Filter
Top Products
17-EN
Mounting Sleeve
(Included)
CDE-7859/CDE-7858/CDE-7856
No Pressure Here
No Pressure Here
Dashboard
Metal
Mounting
Strap
Chassis
Screw
Hex Nut (M5)
Bolt Stud
CDE-7859/CDE-7858/
CDE-7856
Ground Lead
∗∗
∗
Lock Pin

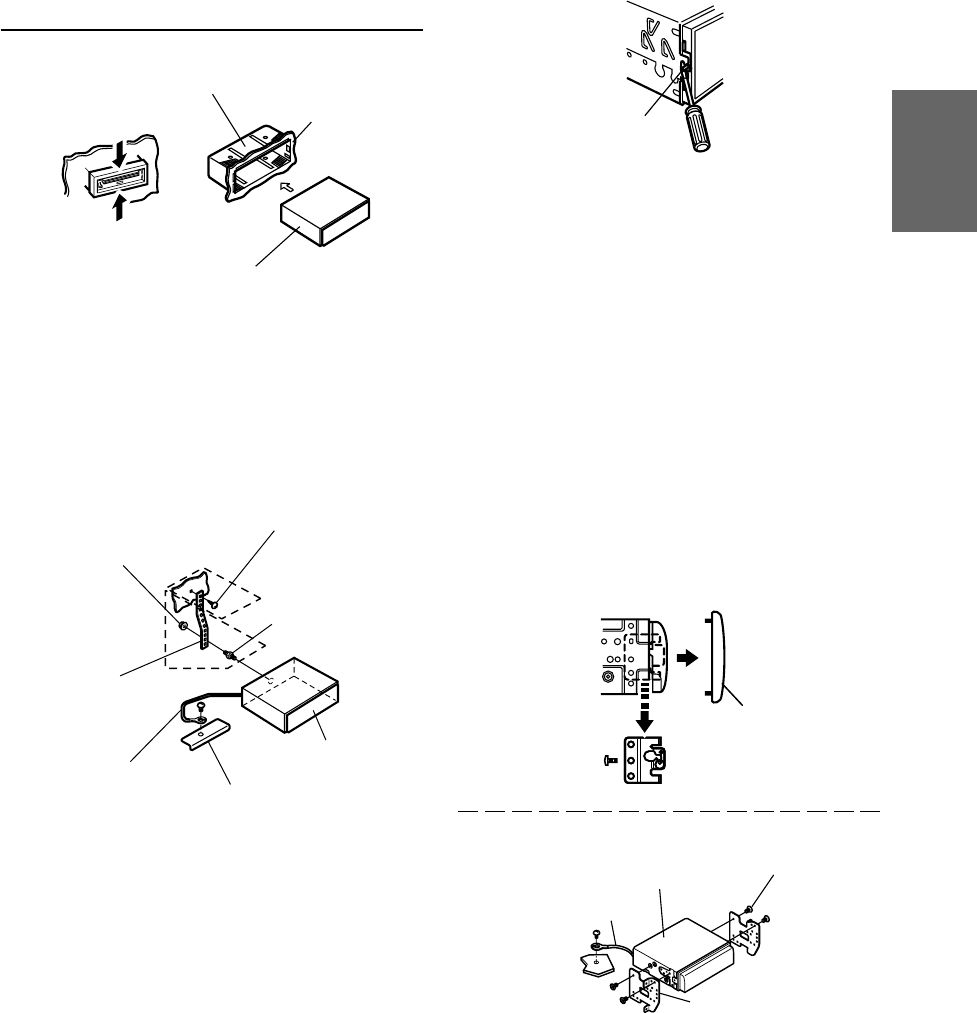

Slide the CDE-7859/CDE-7858/CDE-7856 into the
dashboard. When the unit is in place, make sure the
locking pins are fully seated in the down position.
This can be done by pressing firmly in on the unit
while pushing the locking pin down with a small
screwdriver. This ensures that the unit is properly
locked and will not accidentally come out from the
dashboard. Install the Detachable Front Panel.
Removal
1 Remove the DETACHABLE FRONT PANEL.
2 Use a small screwdriver (or similar tool) to push
the locking pins to the "up" position (see above
drawing). As each pin is unlocked, gently pull out
on the unit to make sure it does not re-lock before
unlocking the second pin.
3 Pull the unit out, keeping it unlocked as you do
so.
3
<JAPANESE CAR>
Face Plate
Mounting Bracket
Ground Lead
CDE-7859/CDE-7858/CDE-7856
Screws (M5 × 8)
(Included)
NOTE
Secure the ground lead of the unit to a clean metal spot
using a screw (
∗
) already attached to the vehicle's
chassis.
∗
Installation
1
Remove the Detachable Front Panel (refer to page
4). Slide mounting sleeve from main unit. (see
“Removal” on this page).
Slide the mounting sleeve into the dashboard.
NOTE
Please examine the installation. Make certain that no
external pressure is applied to either the top of the unit
or the removable nosepiece.
2
Reinforce the head unit with the metal mounting
strap (not supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (
∗
) already
attached to the vehicle’s chassis.
NOTE
For the screw marked
**
, use an appropriate screw for
the chosen mounting location.
Connect each input lead coming from an amplifier or
equalizer to the corresponding output lead coming
from the left rear of the CDE-7859/CDE-7858/CDE-
7856. Connect all other leads of the CDE-7859/CDE-
7858/CDE-7856 according to details described in the
CONNECTlONS section.
