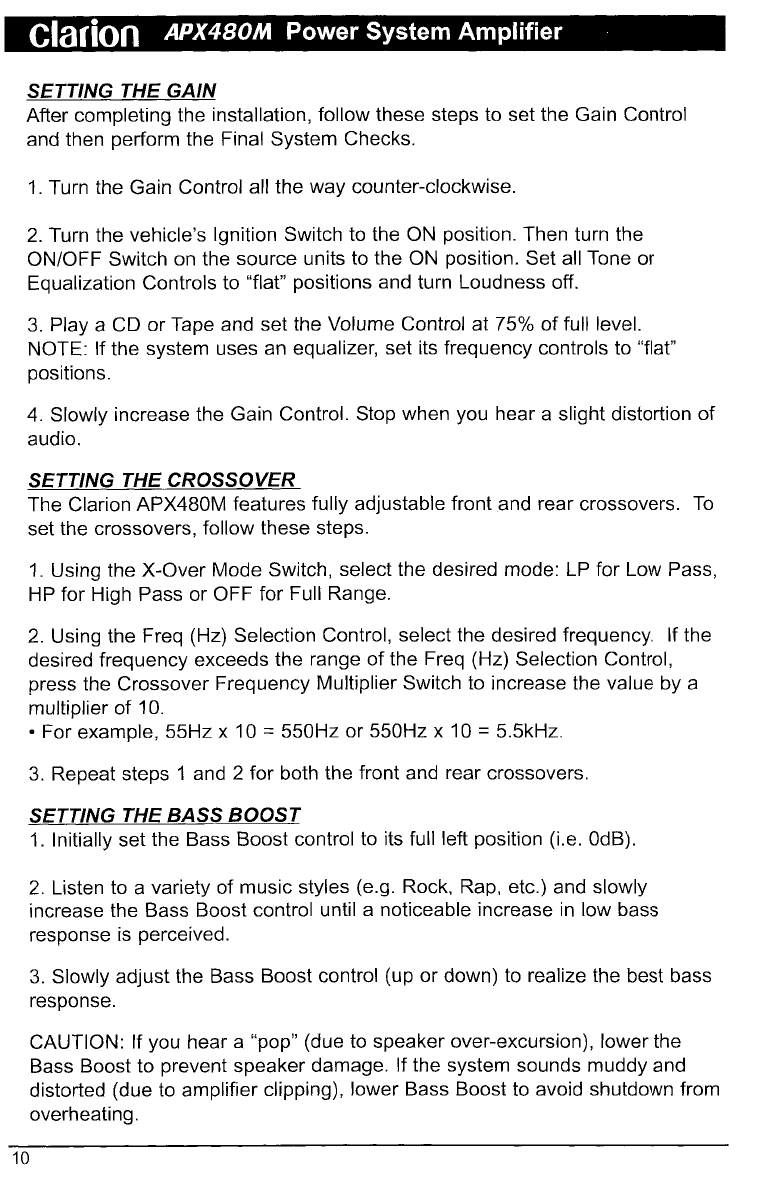

Clarion
APX480M
Power System Amplifier
SETTING THE GAIN
After completing the installation, follow these steps to set the Gain Control
and then perform the Final System Checks.
1.
Turn the Gain Control all the way counter-clockwise.
2.
Turn the vehicle's Ignition Switch to the ON position. Then turn the
ON/OFF Switch on the source units to the ON position. Set all Tone or
Equalization Controls to "flat" positions and turn Loudness off.
3.
Playa
CD
or
Tape and set the Volume Control at 75%
of
full level.
NOTE: If the system uses an equalizer, set its frequency controls to "flat"
positions.
4.
Slowly increase the Gain Control. Stop when you hear a slight distortion
of
audio.
SETTING THE CROSSOVER
The Clarion APX480M features fully adjustable front and rear crossovers.
To
set the crossovers, follow these steps.
1.
Using the X-Over Mode Switch, select the desired mode: LP for Low Pass,
HP for High Pass or OFF for Full Range.
2.
Using the Freq (Hz) Selection Control, select the desired frequency. If the
desired frequency exceeds the range
of
the Freq (Hz) Selection Control,
press the Crossover Frequency Multiplier Switch to increase the value by a
multiplier of 10.
• For example, 55Hz x 10
:::
550Hz or 550Hz x 10
:::
5.5kHz.
3.
Repeat steps 1 and 2 for both the front and rear crossovers.
SETTING THE BASS
BOOST
1.
Initially set the Bass Boost control to its full left position (i.e.
OdB).
2.
Listen to a variety of music styles (e.g. Rock, Rap, etc.) and slowly
increase the Bass Boost control until a noticeable increase
in
low bass
response
is
perceived.
3.
Slowly adjust the Bass Boost control (up or down) to realize the best bass
response.
CAUTION: If you hear a "pop" (due to speaker over-excursion), lower the
Bass Boost to prevent speaker damage. If the system sounds muddy and
distorted (due to amplifier clipping), lower Bass Boost to avoid shutdown from
overheating.
