Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Hinweis: Bitte diese Seite ausfalten und beim Lesen der einzelnen Kapitel die Zeichnungen auf der ersten Seite beachten.
Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitolo.
Opmerking:
Vouw deze pagina uit en zie tevens de afbeeldingen van het voorpaneel tijdens het doorlezen van de volgende hoofdstukken.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
Observera: Vik ut denna sida för att kunna överblicka illustrationerna som hör till varje kapitel.
Nota: Lembre-se de abrir esta página e consultar os diagramas frontais durante a leitura de cada capítulo.

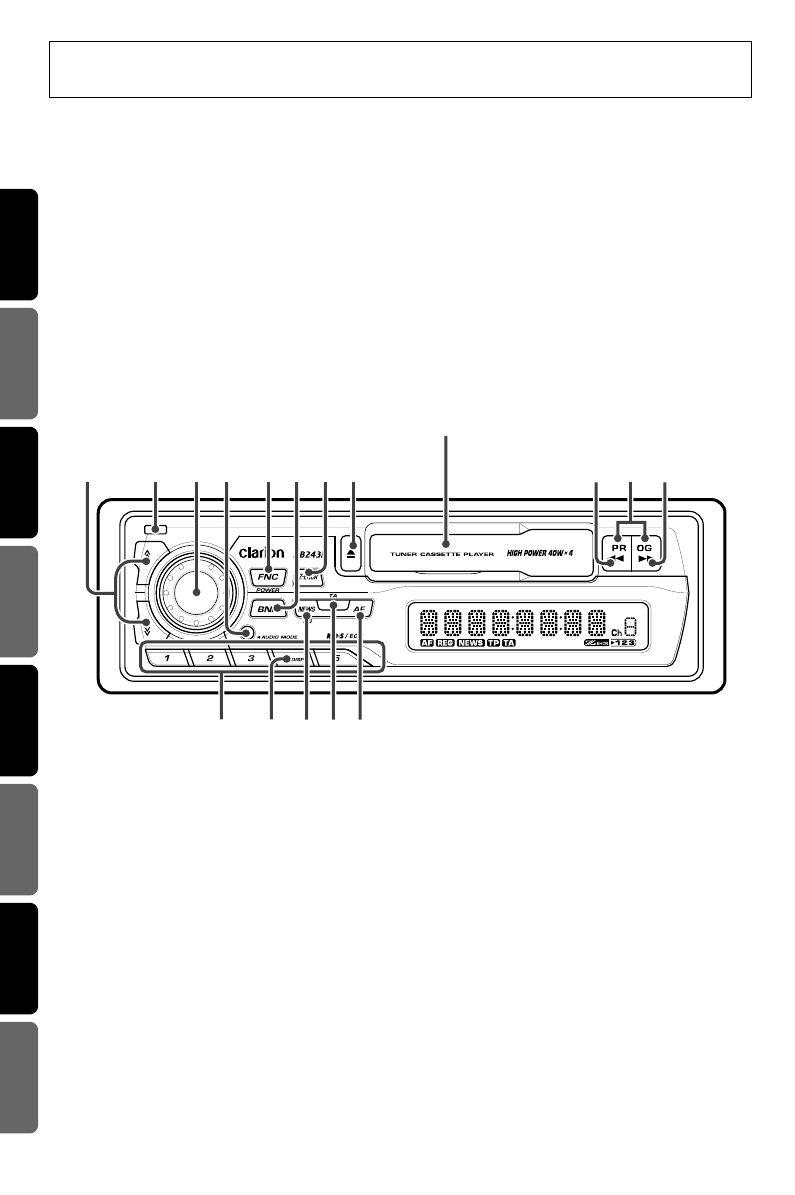

MAIN UNIT / APPAREIL PRINCIPAL / HAUPTGERÄT / APPARECCHIO PRINCIPALE
HOOFDAPPARAAT / UNIDAD PRINCIPAL / BILSTEREO / APARELHO PRINCIPAL
@%#$
2537468
1
09!
¥
Cassette Insertion Slot / Fente d’insertion de la cassette
Cassettenschacht / Vano di inserimento cassetta
Cassette-insteekgleuf / Ranura de inserción del casete
Kassettfack / Abertura de inserção de cassete
CONTROLS / COMMANDES / BEDIENUNGSELEMENTE / COMANDI
2.
BEDIENINGSORGANEN / CONTROLES / REGLAGE / CONTROLOS
English Français Deutsch Italiano
Nederlands
Español Svenska
Português
4
3. D.C.P. (Detachable Control Panel)
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the included DCP case to prevent scratches.
We recommend taking the detachable control
panel with you when leaving the car.
Removing the DCP
1. Turn the power off.
2. Press the DCP release button 2.
*
The DCP is unlocked.
3. Remove the DCP.
Attaching the DCP
Insert the DCP into the right side of the main unit
and press the left side to lock it.
DO NOT insert the DCP from the left side.
Doing so may damage it.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP case
(Ensure the DCP is in the correct orientation.)
•
The DCP can easily be damaged by shocks.
After removing it, place it in a protective
case and be careful not to drop it or subject
it to strong shocks.
•
When the release button is pressed and the
DCP is unlocked, the car’s vibrations may
cause it to fall. To prevent damage to the
DCP, always store it in a protective case
after detaching it.
•
The rear connector that connects the main
unit and the DCP is an extremely important
part. Be careful not to damage it by pressing
on it with fingernails, pens, screwdrivers, etc.
Note:
•
If the DCP is dirty, wipe off the dirt with a soft, dry cloth only.
DCP Rear Panel Main Unit Front
Main unit connector
DCP
connector
DCP
DCP case
DCP
2.
1.
DCP
DCP Release button 2
