2-Ohm subwoofer system (DPX1851/DPX11551)
This application shows a DPX1851 or DPX11551 driving a pair of DVC 2 Ohm
subwoofers.

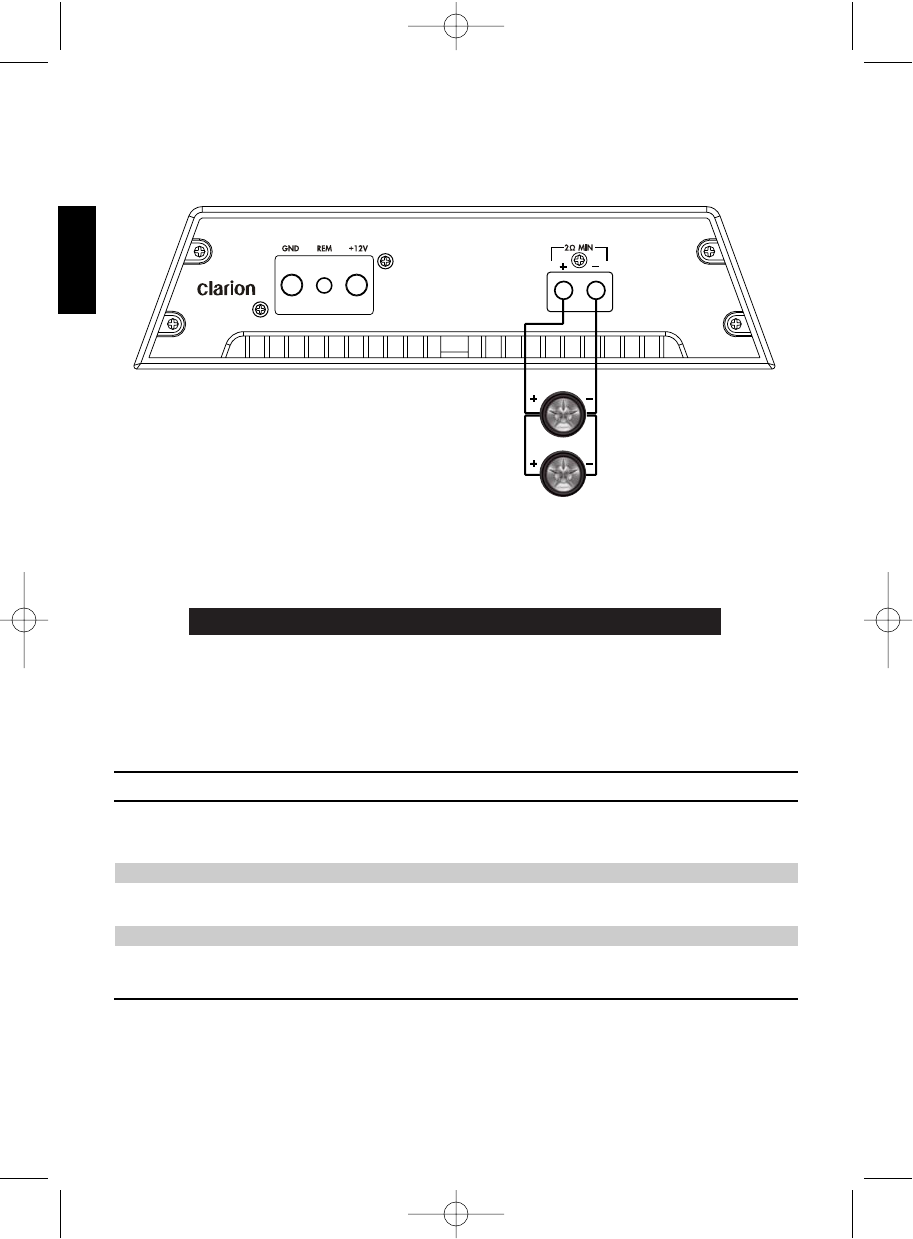

DPX1851/DPX11551 speaker configuration
The units produce maximum power when connected to a 2 Ohm load. Under no
circumstance should loads under 2 Ohms be used with these units.
WARNING
Do not connect a load less than 2-Ohm as permanent damage
may occur and the warranty will be nullified.
The following DPX1851 or DPX11551 configurations achieve full power.
Speaker configurations
Driver type Quantity Wiring Net load
Single-voice coil - 8 Ohm 4 Parallel 2 Ohm
Single-voice coil - 4 Ohm 2 Parallel 2 Ohm
Single-voice coil - 2 Ohm 4 Parallel/Series 2 Ohm
Dual-voice coil - 8 Ohm 2 Parallel 2 Ohm
Dual-voice coil - 4 Ohm 4 Parallel/Series 2 Ohm
Dual-voice coil - 2 Ohm 2 Series/Parallel 2 Ohm
Other speaker configurations are possible using a combination of series and parallel
wiring. See your authorized Clarion dealer for assistance.
DVC 2 Ohm
Subwoofer
DVC 2 Ohm
Subwoofer
