Clarion Corporation of America
www.clarion.com
Main Power Supply (Yellow)
Ground (Black)
Amplifier Control (Blue/White)
RCA Input (White)
Clear/Red Stripe
(+)
Clear
(-)
Clear/Red Stripe
(+)
Clear
(-)
CENTER UNIT
DVH920
or
Head Unit
Output (RCA)
Center Audio Output
Center Speaker Box
Center Speaker Amplifier

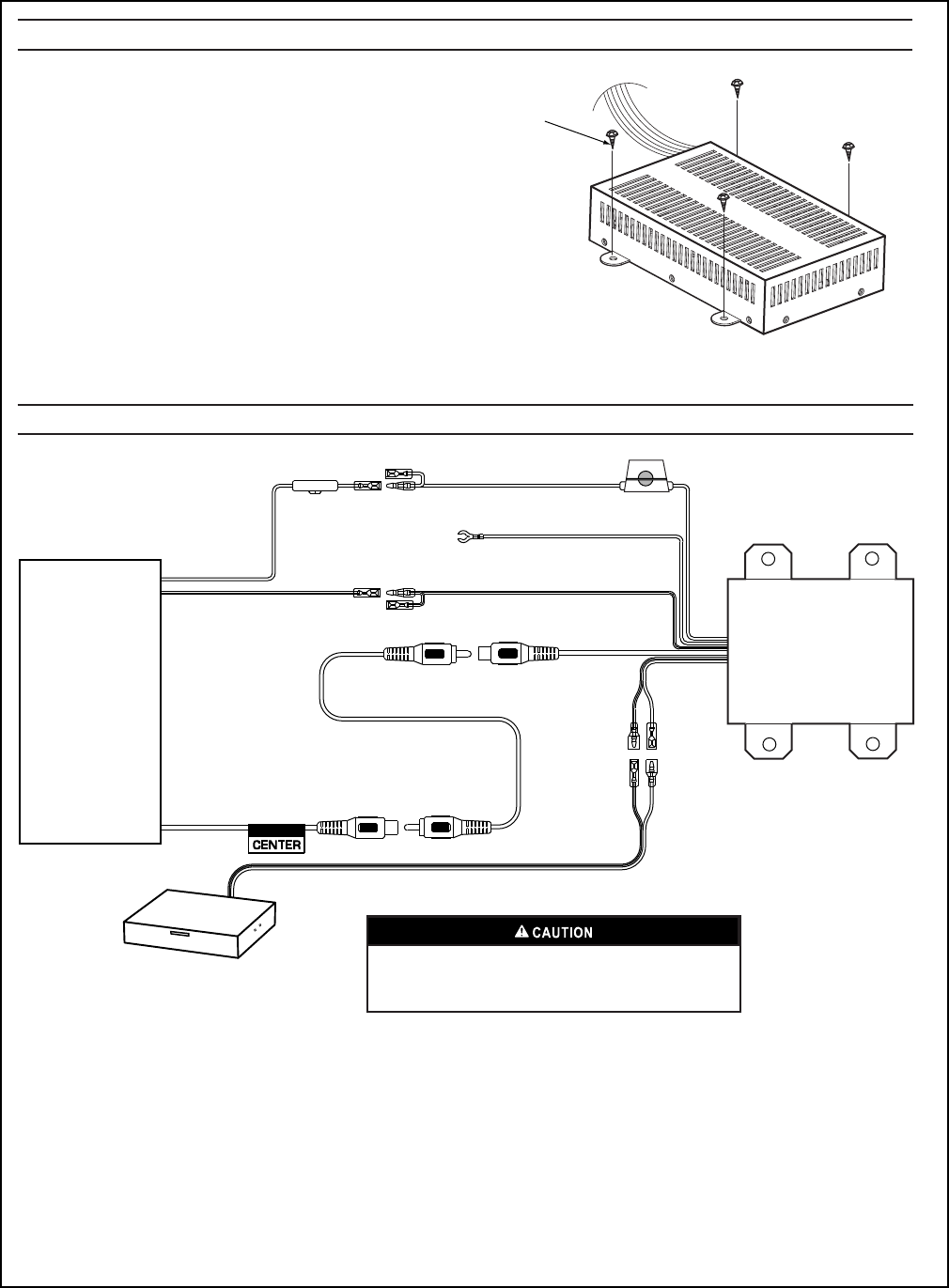

WIRE CONNECTIONS
AMPLIFIER INSTALLATION
Surface Mount
Screw
Secure the amplifier unit to the surface with the provided screws.
Do not replace amplifier or speaker with any other source.
Replacement of incorrect amplifier or speaker may result
in potential damage to equipment.
