Foot-operated
Parking brake
Parking brake
Signal Cable
Hand-operated
Parking brake
-

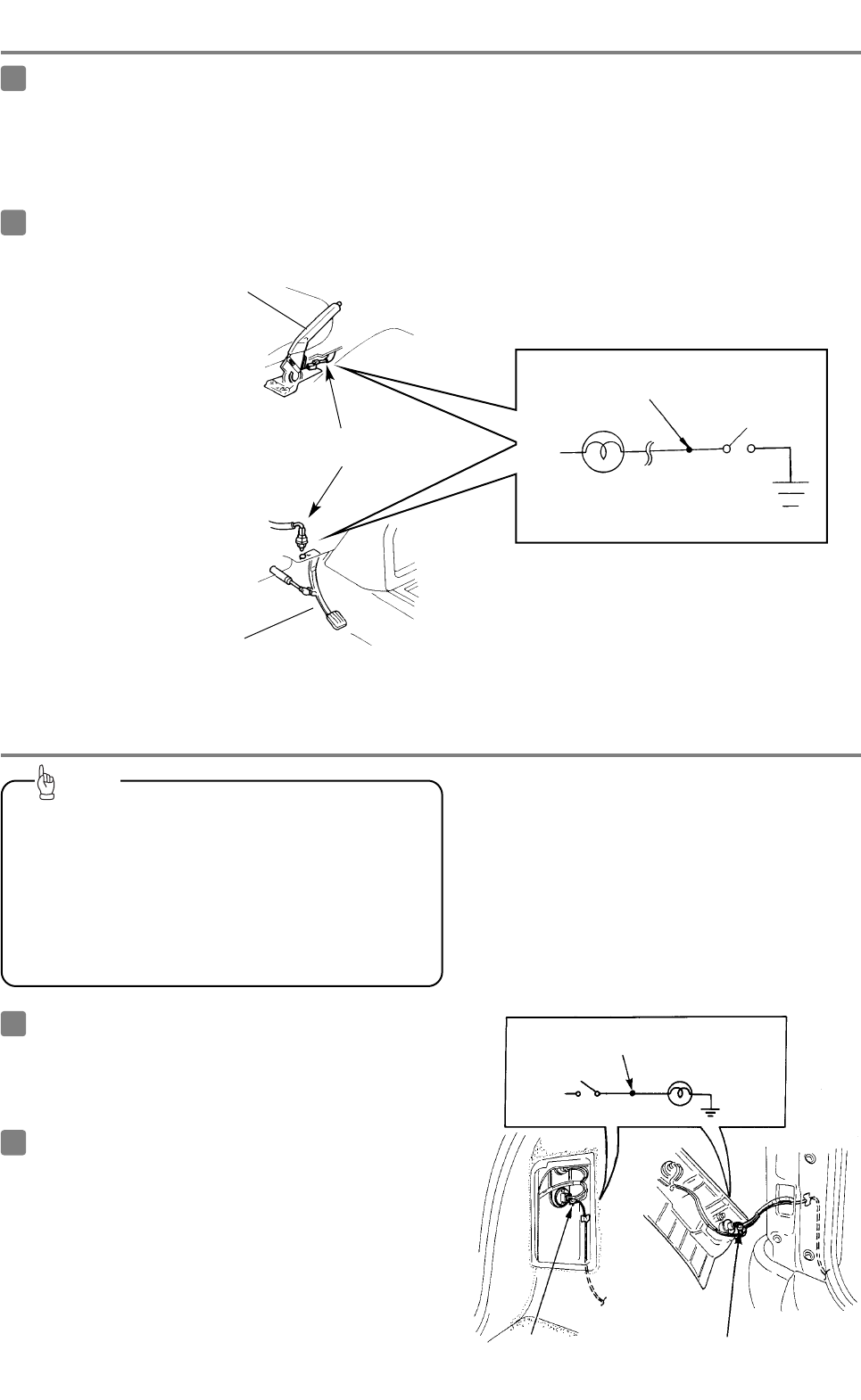

An example for connecting the parking brake signal
-
Use a splicing connector to connect the parking
brake signal cable (red/white) coming from the
main unit to the parking brake signal cable of the
vehicle.
1
Route the parking brake signal cable to the main
unit.
2
Position to attach
a splicing connector
Parking brake
signal cable
Position to attach
a splicing connector
Reverse signal cable
Reverse lamp
Reverse signal cable
-
An example for connecting the reverse signal cable
-
Use a splicing connector to connect the reverse
signal cable (green) coming from the main unit to
the reverse signal cable of the vehicle.
1
Route the reverse signal cable to the main unit .
2
•
Be sure to connect the reverse signal cable. If it is
not connected, the vehicle position may be
incorrect when the vehicle is reversed.
•
Use a circuit tester to confirm that a sensing
voltage of 6 V or higher is generated when the
vehicle is reversed.
