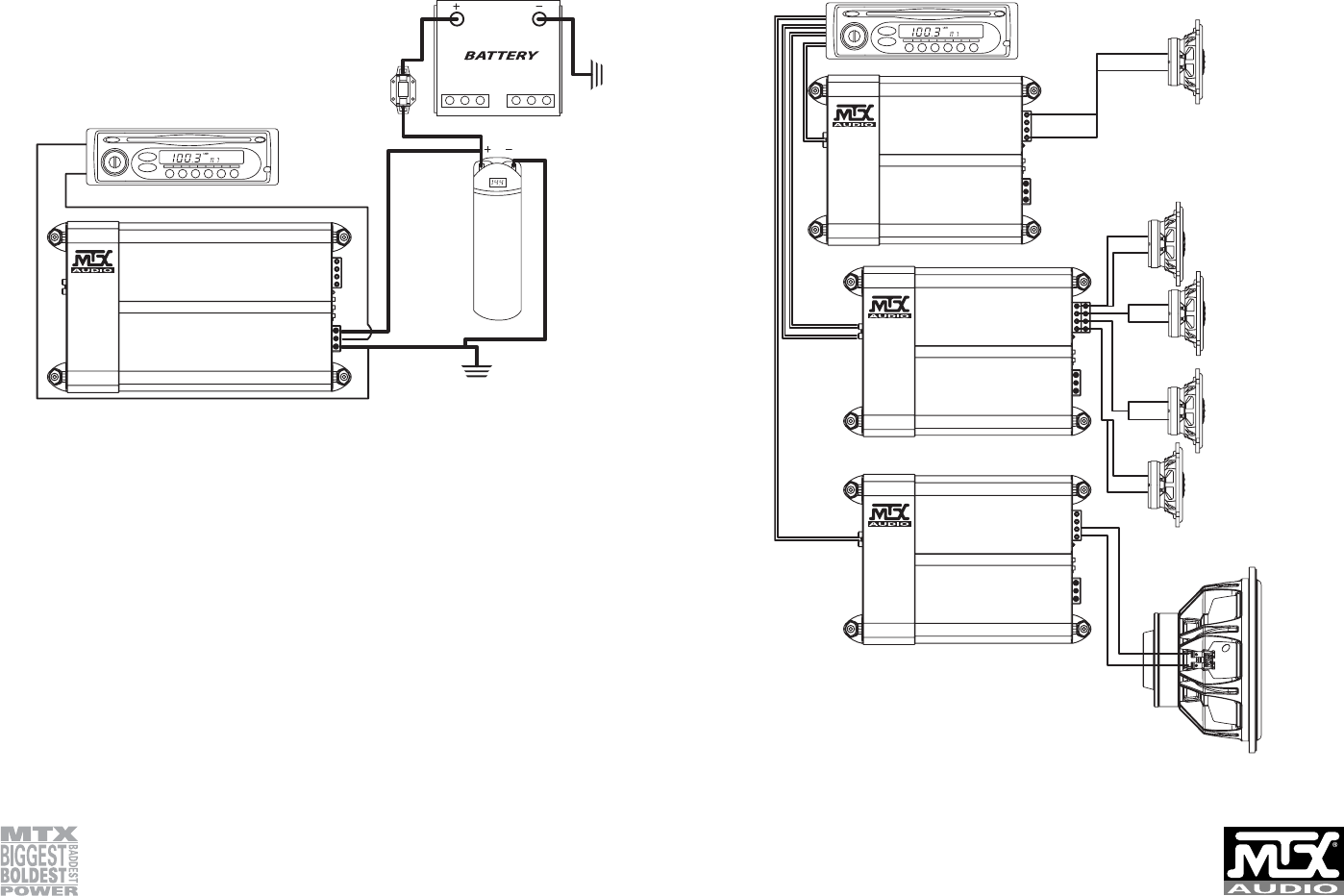

WIRING DIAGRAM (CHARGING SYSTEM) WIRING DIAGRAM (5.1 SURROUND SOUND EXAMPLE)
Ground amplifier and
capacitor to same point
on vehicle chassis
From source unit, run ground wire
directly to amp’s “GND” terminal
Remote wire from source unit (usually all blue)
check source unit manual for actual color
Source Unit
(4 Gauge only)
Mount fuse
no more than 18”
from battery
1 Farad
StreetWires
Stiffening
Capacitor
5.1 Dolby Processor
Amplifier #1
2-Channel
Amplifier #2
4-Channel
Amplifier #3
Class D monoblock
(1) 2Ω
Woofer
REAR
(2) 4Ω
Speakers
FRONT
(2) 4Ω
Speakers
CENTER
(1) 4Ω
Speaker
