NOVARA KeyPads
35
Novara ControlPads & KeyPads
Daisy-Chaining KeyPads
KeyPads can be daisy-chained as shown in FIG. 9.
Use screened cable to link units.
Maximum cable length between panels should not exceed 50’ (15.24 m).
Button Layout
FIG. 10 indicates the button layout for 8 and 16 button KeyPads:
8-Button KeyPads can be configured for button numbers 1-8, 9-16, 17-24, or 25-32.
16-Button KeyPads can be configured for button numbers 1-16 or 17-32.

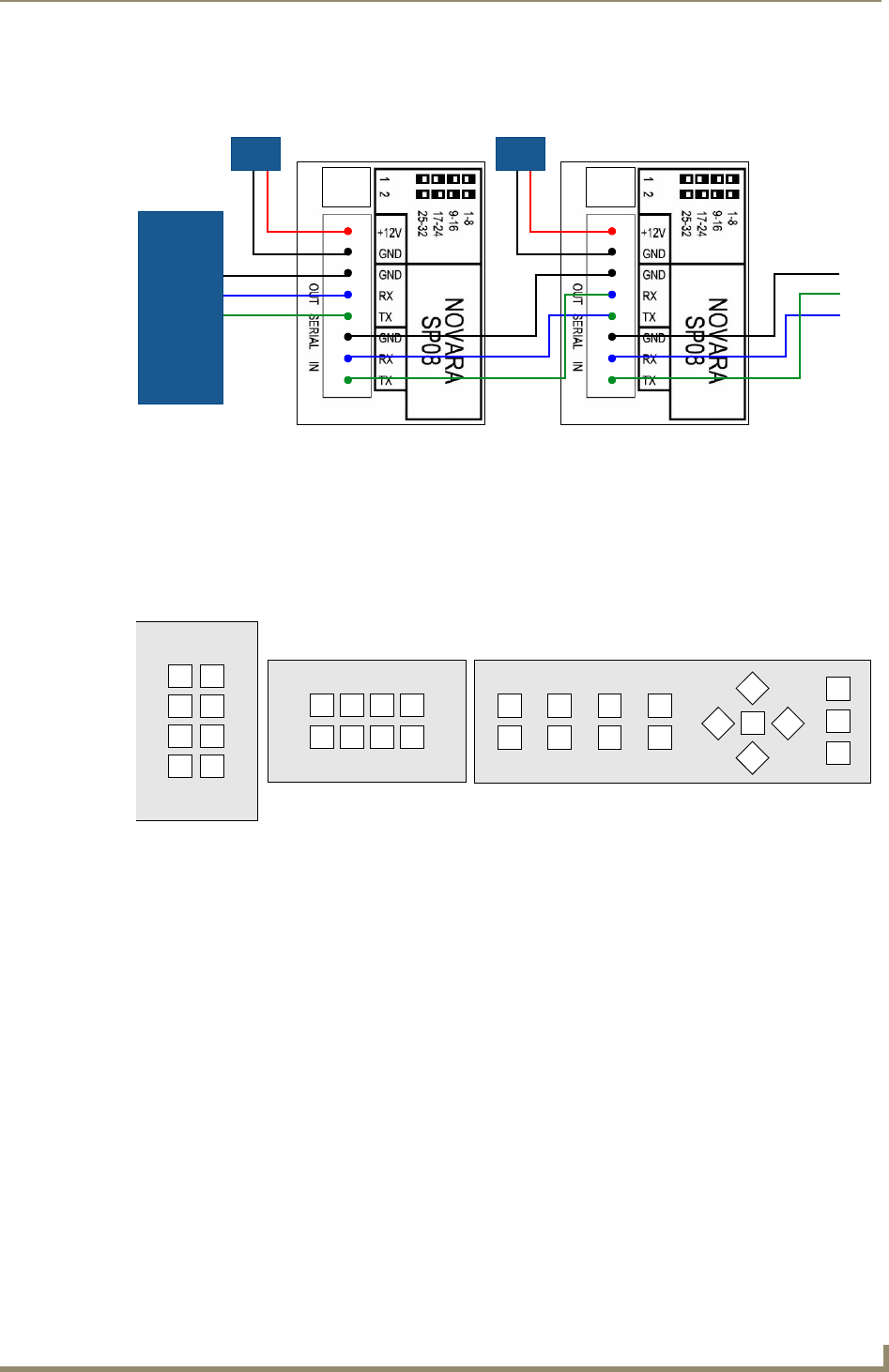

FIG. 9 Daisy-Chaining KeyPads
FIG. 10 KeyPads Button Layout
Power Supply
NetLinx Master
(RS232 port)
GND
TX
RX
Power Supply
1234
5678
1
3
5
7
2
4
6
8
1234
5678
15
13 14
12
16
9
10
11
8-button US style
8-button UK/EU style 16-button US/UK/EU style
