PowerBook G4 (12-inch) Take Apart - 63
Inner Frame: PowerBook G4 (12-inch)

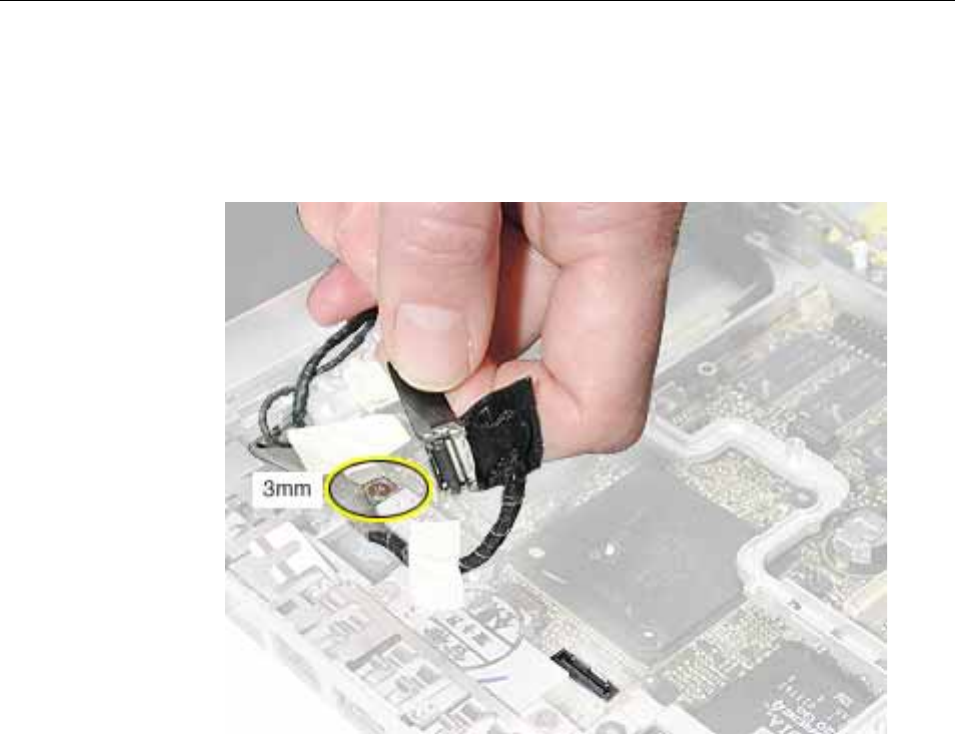

6. Pull up the LVDS cable with the pull tab
Warning: Be careful not to strain the LVDS cable.
7. Remove the screw at the LVDS cable.
Replacement Note: When reinstalling the LVDS cable, tuck the pull tab under the
frame.
