Disassembly Procedure
2 - 5
Optical Drive Module

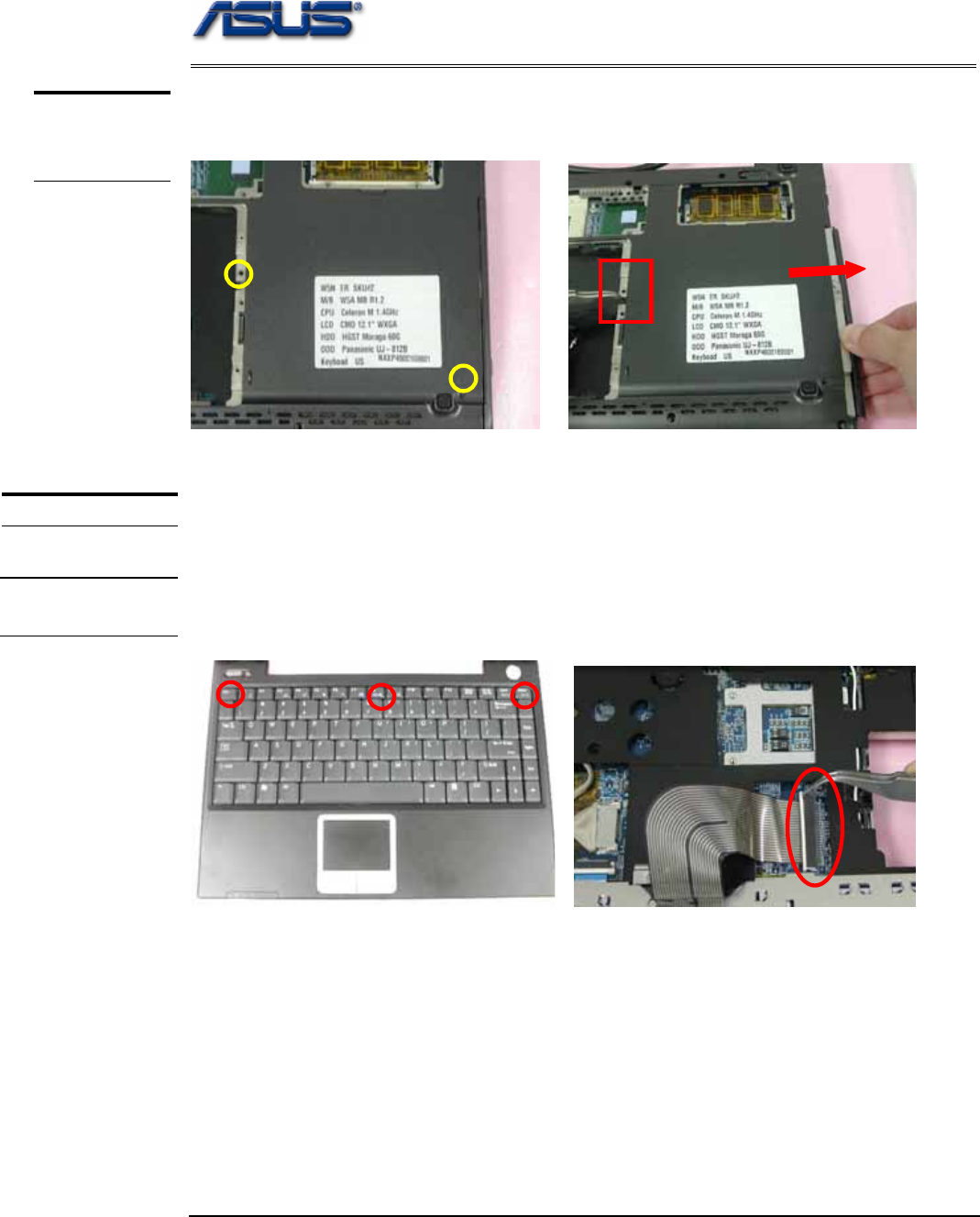

Remove 3 screws and use tweezers to put the Optical Drive Module out.
Keyboard Module
The illustration of below shows how to remove the keyboard
Removing Keyboard Cover
1. Unlock 3 keyboard latches then pull out the keyboard forward and lay the keyboard
on the front side then disconnect the FPC.
KEYBOARD
K/B COVER
REMOVAL
OPTICAL
DRIVE
REMOVAL
M2*4L
