c.

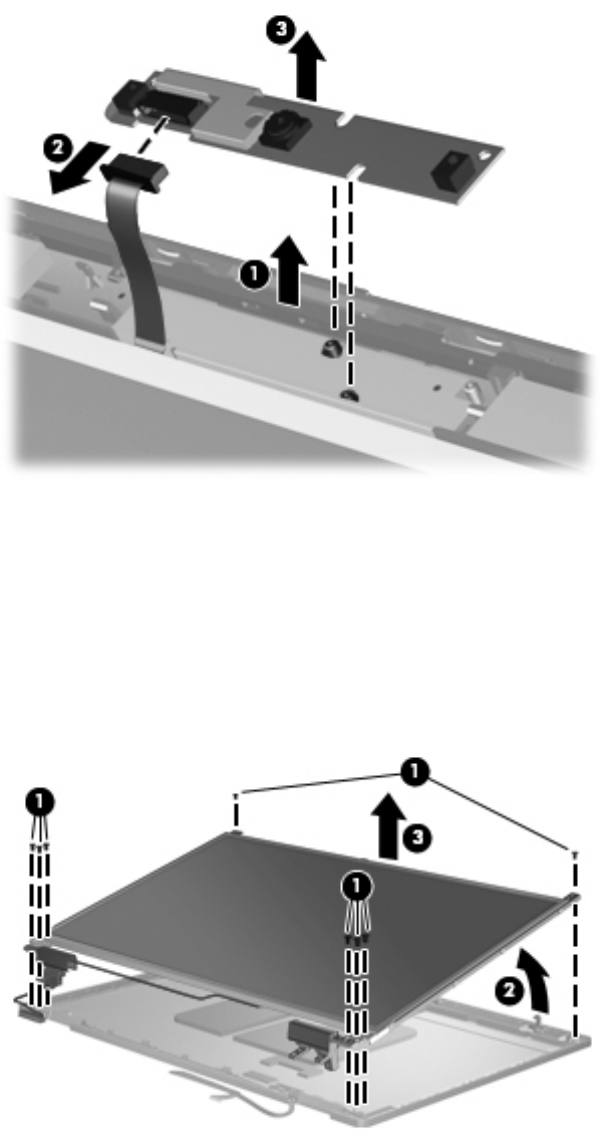

Remove the webcam/microphone module (3).
The webcam/microphone module is available using spare part number 684346-001. The
microphone module is available using spare part number 642797-001.
7. If it is necessary to replace the display panel:
a. Remove the eight Phillips PM2.5×4.0 screws (1) that secure the display panel to the
display enclosure.
b. Lift the top edge of the display panel (2) until the display panel rests at an angle.
c. Remove the display panel (3).
The display panel is available using the spare part number 710653-001.
Component replacement procedures
63
