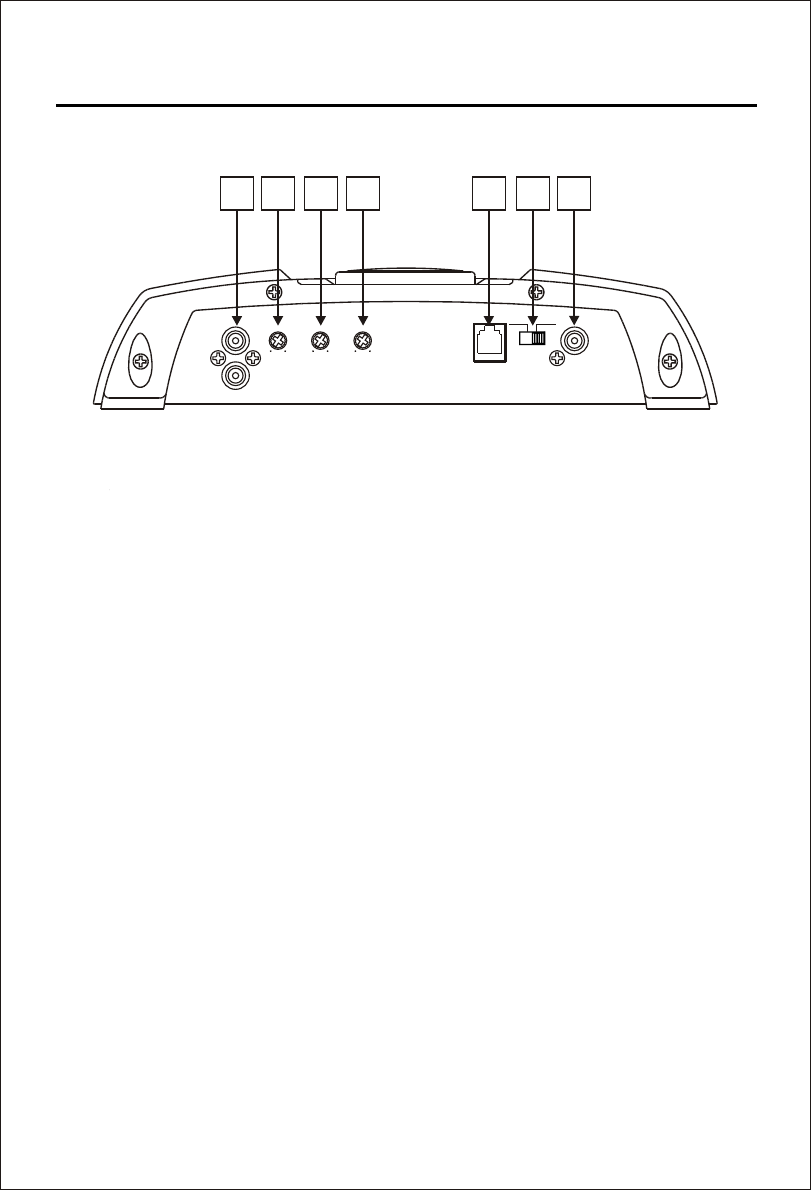

1 2 3 4 5 6 7
1. RCA Input Jacks 2. Input Level Control 3. Low Pass Frequency
4. Bass Boost
5. Remote Control Jack 6. Master/Slave Switch 7. Slave Input Jack
OPERATION
REMOCON
GAIN
L.P.F BASS
BOOST
50Hz
250Hz
L
R
LINE INPUT
SLAVE
6V 0.2V
MASTER SLAVE
0dB 12dB
Control and Crossover
1. RCA Input Jacks - Low level-high impedance inputs. Use high quality RCA cables designed
for mobile applications.
2. Input Level Control - Adjust the input level for the marked channels. Turn clockwise to
increase the level, counterclockwise to decrease. Amplifiers will run cooler and produce
less system noise at lower level settings.
3. Low Pass Frequency - Adjust the crossover frequency by turning clockwise to set to a higher
frequency, counterclockwise to set to a lower frequency.
4. Bass Boost - Adjust the sub boost level of the selected frequency output from 0dB to 12dB.
5. Remote Control Jack - For connecting the remote control module to the amplifier.
6. Master/Slave Switch - Select the remote level control or the on-board level control as the
master control.
7. Slave Input Jack - Used to connect to another amplifier when bridging 2 amps together.
The Slave mode bypasses normal input jacks and controls.
