UTILITY SOFTWARE
■ Network Setup
For the network setup, you need to set the IP address
using the Utility Software provided and connect the WJ-
NT104 to a PC via the RS-232C port.

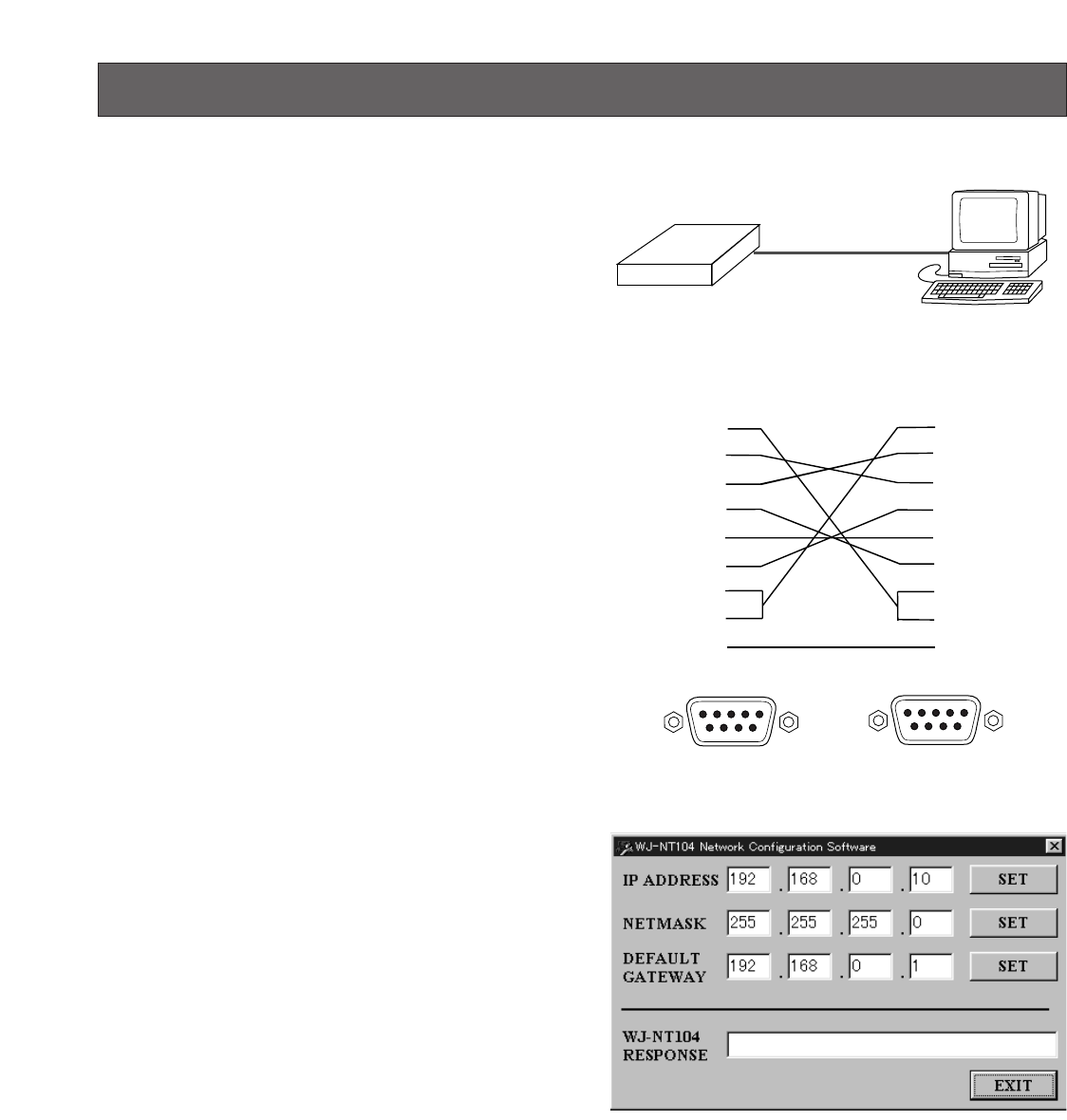

● Connection
The COM1 port of the RS-232C interface is used for
setting the IP address. Your PC should be IBM-PC
compatible, have Windows95, Windows98 or Windows
NT4.0 installed, and have an RS-232C port.
Before installing the Utility Software provided, read the
Readme.txt file on Utility Software disc.
q Connect the RS-232C port on the front of the WJ-NT104
and the RS-232C port of the PC with an RS-232C
cable.
w Set bits #7 and #9 of the MODE selector to ON position
(leave the others on OFF), and then press the RESET
button on the front of the WJ-NT104.
e Click the Start button, point to Programs and then WJ-
NT104 Utilities, then click Network Configuration.
r To set the IP address: Enter the IP address into the [IP
ADDRESS] fields of the dialog box, then click the
[SET] button. If the IP address has been set properly,
the response command REI and the IP address enter-
ed (in hexadecimal, 8-bit notation, e.g., REI:COA8000A
for IP address 192.168.0.10) should appear in the WJ-
NT104 RESPONSE field. If a wrong number is shown,
click the [SET] button again.
t To set the netmask: Enter a set value into the [NET-
MASK] fields of the dialog box, then click the [SET]
button. If the netmask has been set properly, the
response command REM and the set value entered (in
hexadecimal, 8-bit notation, e.g., REM:FFFFFF00 for
the set value 255.255.255.0) should appear in the WJ-
NT104 RESPONSE field. If a wrong number is shown,
click the [SET] button again.
y To set the default gateway: Enter a set value into the
[DEFAULT GATEWAY] fields of the dialog box, then
click the [SET] button. If the default gateway has been
set properly, the response command REG and the set
value entered (in hexadecimal, 8-bit notation, e.g.,
REG:COA80001 for the set value 192.168.0.1) should
appear in the WJ-NT104 RESPONSE field. If a wrong
number is shown, click the [SET] button again.
u Complete the setup by clicking the [EXIT] button.
i Return all switches on the MODE selector to OFF posi-
tion and then press the RESET button on the front of the
WJ-NT104.
This completes setup and return to the normal applica-
tion mode.
