Appendix B: DIP Switch Setting
Be sure to turn the power to both the printer and host computer off before
changing the setting of the DIP switches.

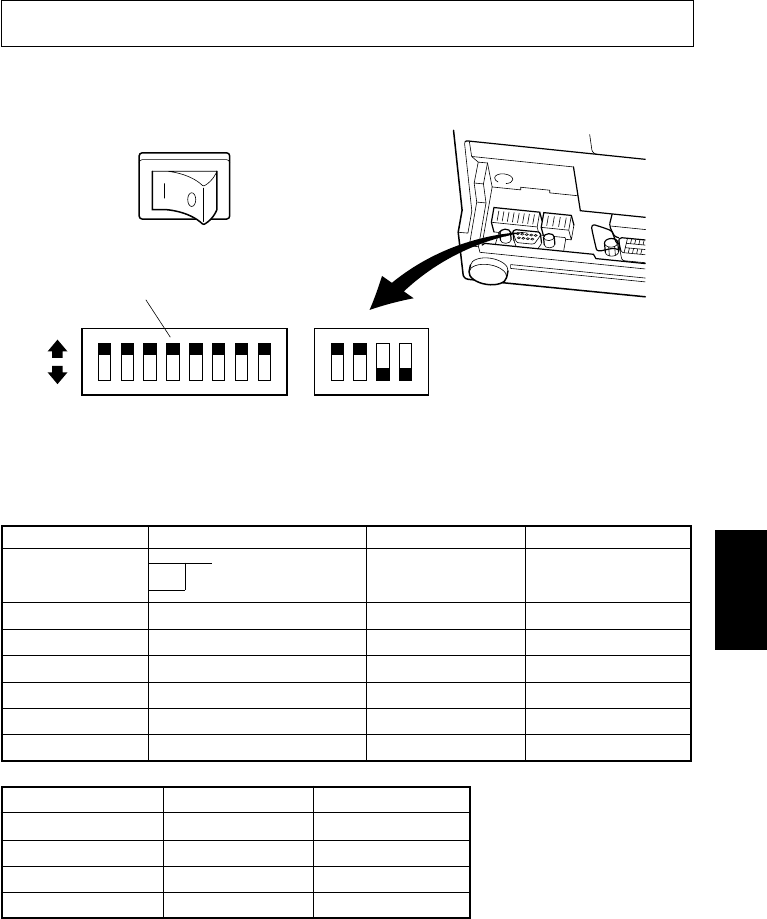

DIP switch array
DIP switch #1
The factory settings of DIP switch 1 are all on.
Switch Contents ON OFF
1-1 Baud Rate
1-2
1-3 Data Length 8 bit 7 bit
1-4 Parity Check Disabled Enabled
1-5 Parity Selection Odd Even
1-6 Handshake DTR/DSR XON/XOFF
1-7 Operating Mode Star ESC/POS
1-8 Interface RS232C Parallel
Baud Rate 1-1 1-2
2400BPS OFF OFF
4800BPS ON OFF
9600BPS ON ON
19200BPS OFF ON
8141
ON
OFF
DIP switch 1
DIP switch
DIP switch 2
Power off
