TX-6610 1-Port Gigabit GPON Terminal User Guide
14
IP Address: Enter the ONT’s local IP Address, then you can access to the Web-based Utility
via the IP Address, the default value is 192.168.1.1.
Subnet Mask: Enter the ONT’s Subnet Mask, the default value is 255.255.255.0.
Click Save And Reboot to make the settings take effect.
Note:
If you change the IP Address of LAN, you must use the new IP Address to log in the ONT.
4.4 Management

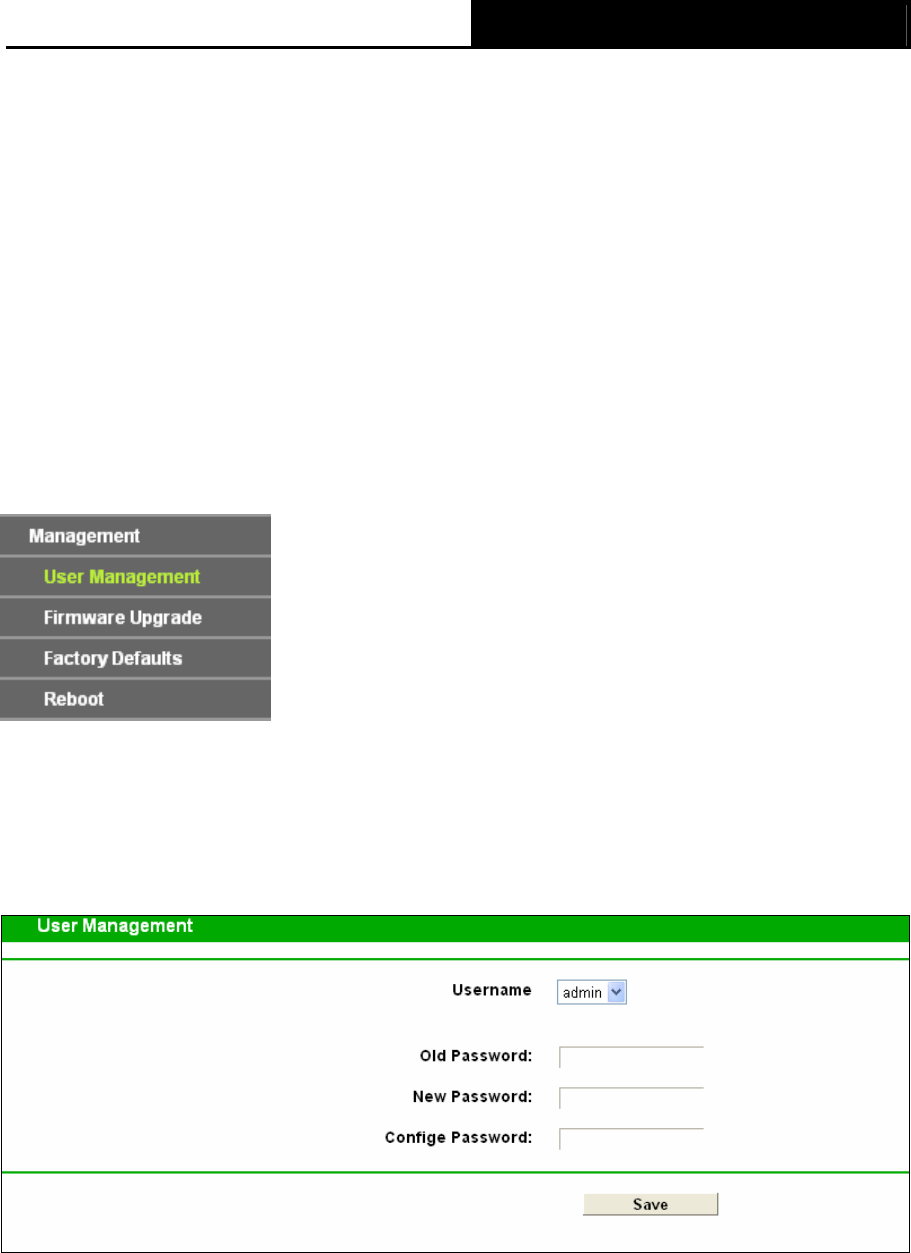

Choose menu “Management”, and you will see the submenus under the main menu: User
management, Firmware Upgrade, Factory Defaults and Reboot. Click any one of them, and
you will be able to configure the corresponding function. The detailed explanations for each
submenu are provided below.
4.4.1 User Management
Choose menu “Management” “User Management”, and then you can change the factory
default user name and password of the ONT in the next screen as shown in Figure 4-5. TX-6610
provides two users: admin/admin and user/user. Both can be used to log in the management
page.
Figure 4-5
It is strongly recommended that you should change the factory default user name and password of
the ONT, because all users who try to access the ONT's Web-based utility will be prompted for the
ONT's default user name and password.
