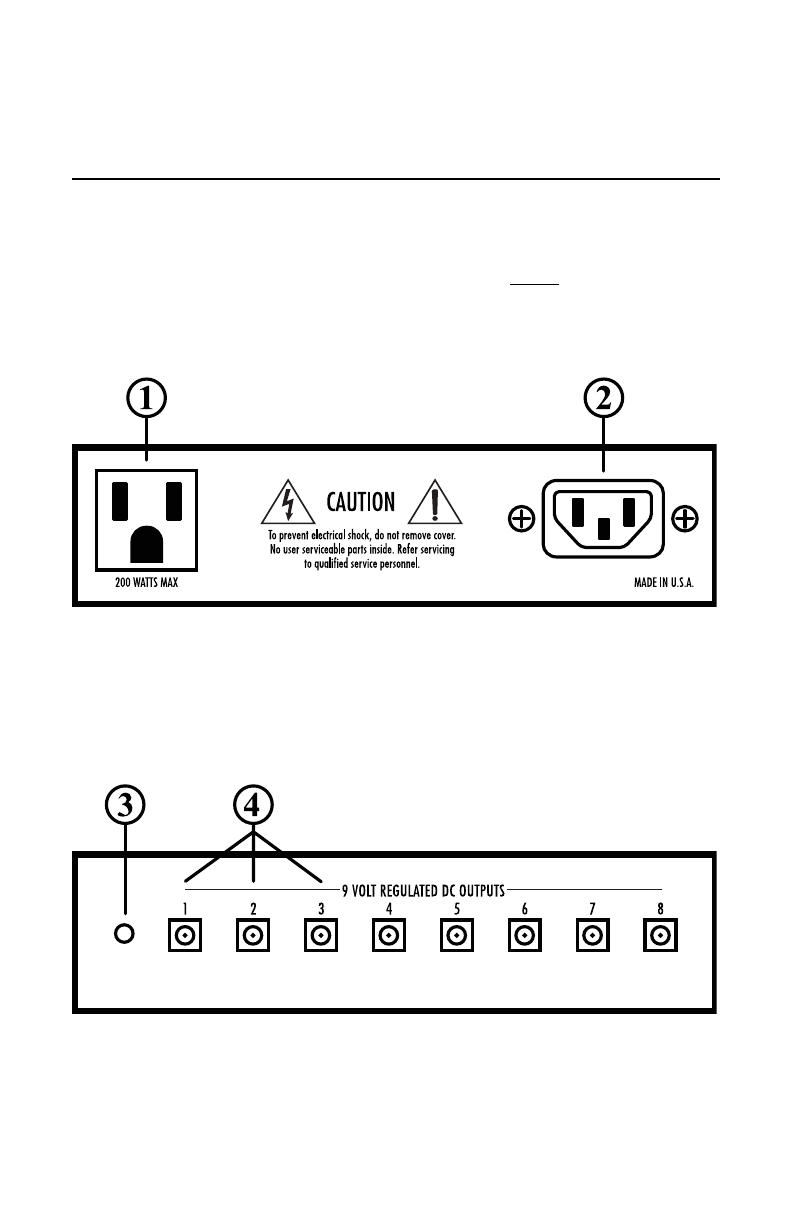

System Unit Description
1. AC auxiliary. This is a courtesy AC outlet for convenient
powering of AC powered effects or a MIDI foot controller.
Note the 200 watt maximum rating. Do NOT plug in your
amp here!
2. AC power input jack. This is a standard “IEC-type” connector.
3. Power indicator. This LED indicates the Pedal Power system
unit is operating.
4. DC output jacks (8). Each output provides 9 volts of isolated,
filtered and regulated DC power for your pedal effects.
5. Voltage selector DIP switches. These switches select the output
voltage. Switches 1-8 correspond to DC outputs 1-8. Normal 9V
operation is with the switch in the “NORMAL” position.
