2-Ohm subwoofer system (DPX1800/DPX11500)

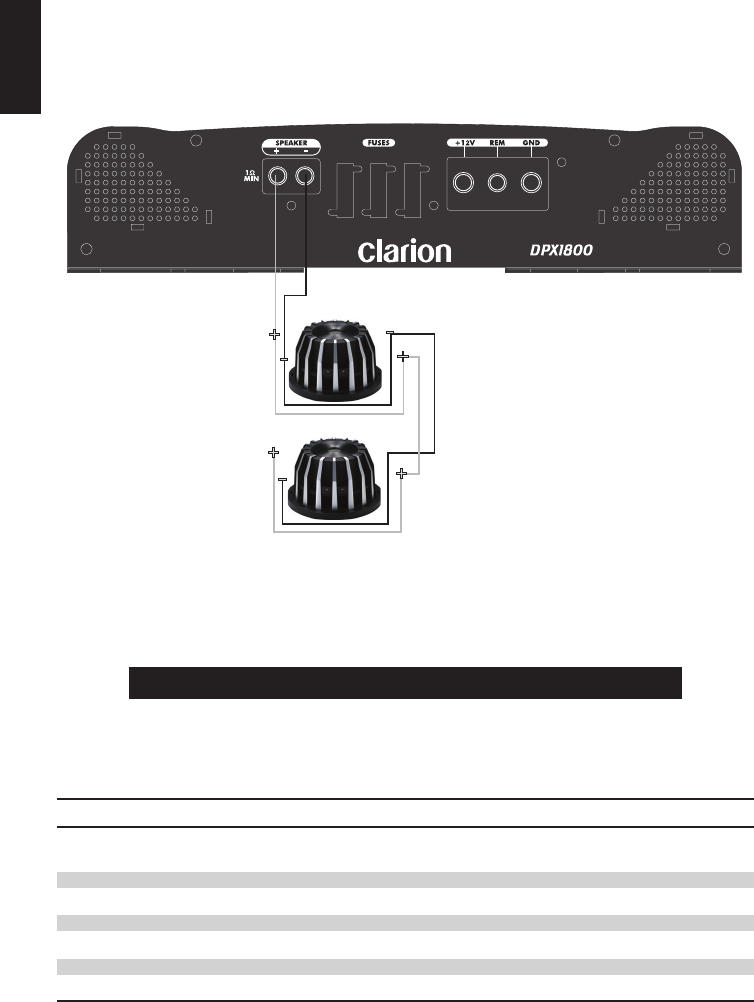

This application shows a DPX1800 or DPX11500 driving a pair of DVC 4Ohm
subwoofers.
DPX1800/DPX11500 speaker configurations
Although the units produce maximum power when connected to a 1 or 2 Ohm load, a
2-Ohm load is recommended.
WARNING
Do not connect a load less than 1-Ohm as permanent damage
may occur and the warranty will be nullified.
The following DPX1800 or DPX11500 configurations achieve full power.
Speaker configurations
Driver type Quantity Wiring Net load
Single-voice coil - 8 Ohm 8 Parallel 2 Ohm
Single-voice coil - 4 Ohm 4 Parallel 2 Ohm
Single-voice coil - 2 Ohm 2 Parallel 2 Ohm
Dual-voice coil - 8 Ohm 4 Parallel/Parallel 2 Ohm
Dual-voice coil - 4 Ohm 2 Parallel/Parallel 2 Ohm
Dual-voice coil - 2 Ohm 1 Parallel 2 Ohm
Other speaker configurations are possible using a combination of series and parallel
wiring. See your authorized Clarion dealer for assistance.
DVC 4 Ohm subwoofer
DVC 4 Ohm subwoofer
