MP6212
5

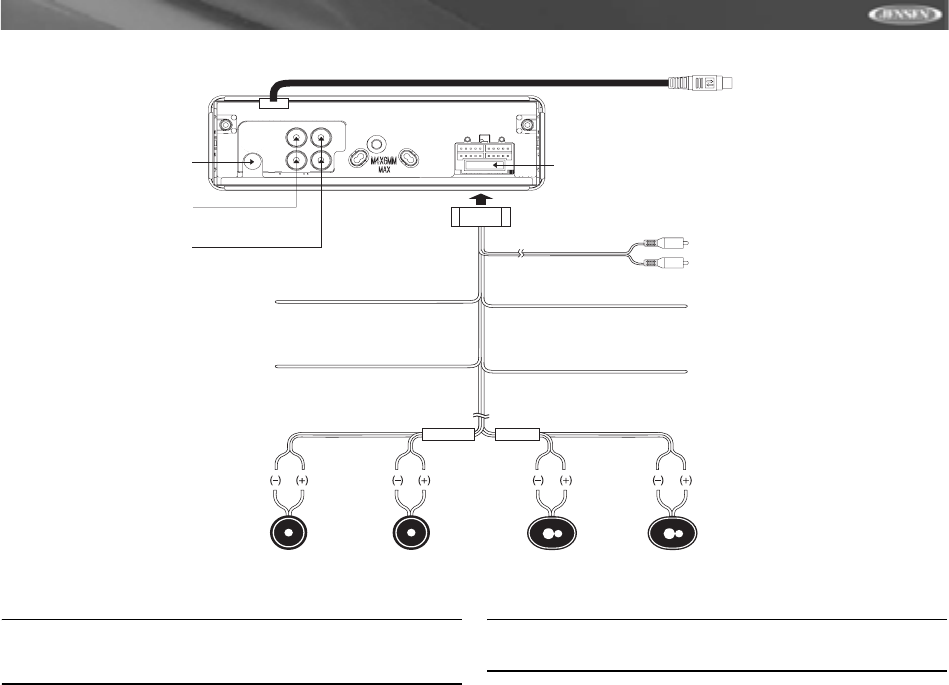

WIRING
NOTE: The amplifier in this radio is only designed for use with four
speakers. Never combine (bridge) outputs for use with two speakers.
Never ground negative speaker leads to chassis ground. Failure to
wire exactly as shown may cause electrical damage to the radio.
NOTE: Only connect speakers with a nominal impedance of 4 ohms.
Speakers with a load impedance less than 4 ohms could damage the
unit.
FRONTSP
PurplePurple/Black
Stripe
GrayGray/Black
Stripe
White/Black
Stripe
White Green/Black
Stripe
Green
Left Speaker
(Front)
Right Speaker
(Front)
Left Speaker
(Rear)
Right
Speaker
(Rear)
Black
Yellow
Blue
Red
REARSP
Aux-in
R (Red)
L(White)
Rear Line out
R (Red)
L(White)
Gray
Fuse (15 amp fast blowATO)
PowerAntenna
Connect topower antenna oramplifier.
If notused, tape bareend of wire.
Accessory/Ignition
Connect toexisting radio wire
or radiofuse.
Ground
Connect toground terminal
or clean,unpainted part
of chassis.
Memory/Battery
Connect tobattery or 12volt
power sourcethat is alwayslive.
The radiowill not workif this
wire isnot connected.
Antenna
Connect theantenna plug
from theexisting antenna
cable (somevehicles
require anadaptor).
Satellite RadioAudio In
Satellite RadioIn
