MOUNTING INSTRUCTIONS:
1) Determine where you want to mount your speaker.

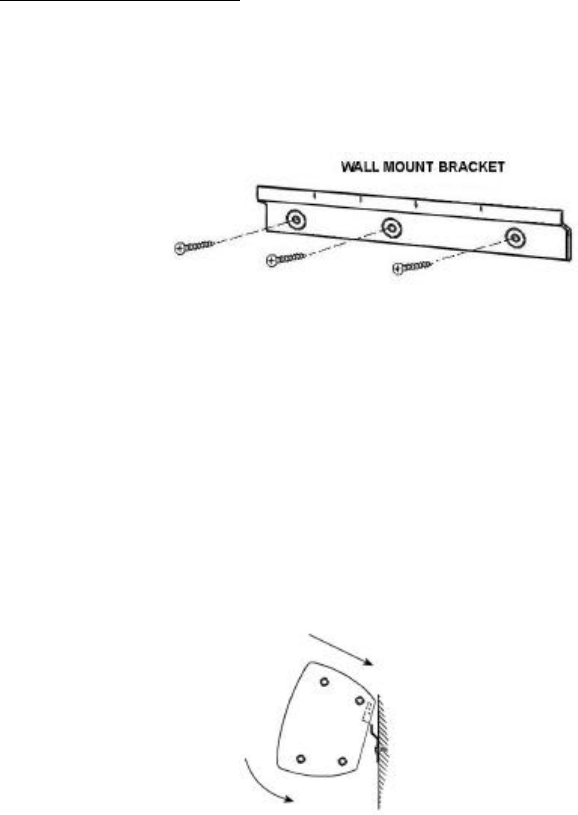

2) Place the speaker on the wall. Make a small mark on the wall at the top center of
the speaker. Remove the speaker from the wall and place the wall mount bracket
so that the mark on the wall lines up with the top center of the bracket.
3) Orient the bracket so that it is level. Mark on the wall the locations for the bracket’s
mounting screws. Remove the mounting bracket from the wall.
4) Using a drill with a 3/16" bit, drill a 2" deep pilot hole at each of the mounting
screwhole marks on the wall. Insert a wall anchor into each hole.
5) Place the bracket back on the wall lining up the screw holes of the bracket with the
holes on the wall. Screw the included mounting screws fully into the wall
anchors. The bracket should now be securely attached to the wall.
6) Center the speaker carefully above the bracket and lower it slowly until the bracket
is fully inserted into the groove on the back of the cabinet.
After completing all connections, turn the system on, then GRADUALLY increase the
volume level. If there is no sound, distorted sound, or if the amplifier shuts itself down
after a few seconds, IMMEDIATELY TURN THE VOLUME DOWN and turn the system
off. Then re-check your wiring for accuracy and for possible shorts at the connecting
terminals (adjacent bare wires touching each other). When everything sounds fine,
keep the volume reasonably low while you familiarize yourself with your system's
various controls and operating modes.
