3.2.11.4 Front/Rear PE Sensor Removal
1. Remove the printer mechanism unit. (See Section 3.2.6.)
2. Using tweezers, release 2 hooks securing the front and rear PE sensors to the rear paper guide
assembly at the bottom of the printer mechanism unit. Then remove the sensors.
3. Disconnect the sensor connector cables from the sensor connectors.
Rear Paper Guide Assembly
Connector Cable for the Rear PE Sensor
Rear PE Sensor
Hooks
Front PE Sensor
Connector Cable for the Front PE Sensor

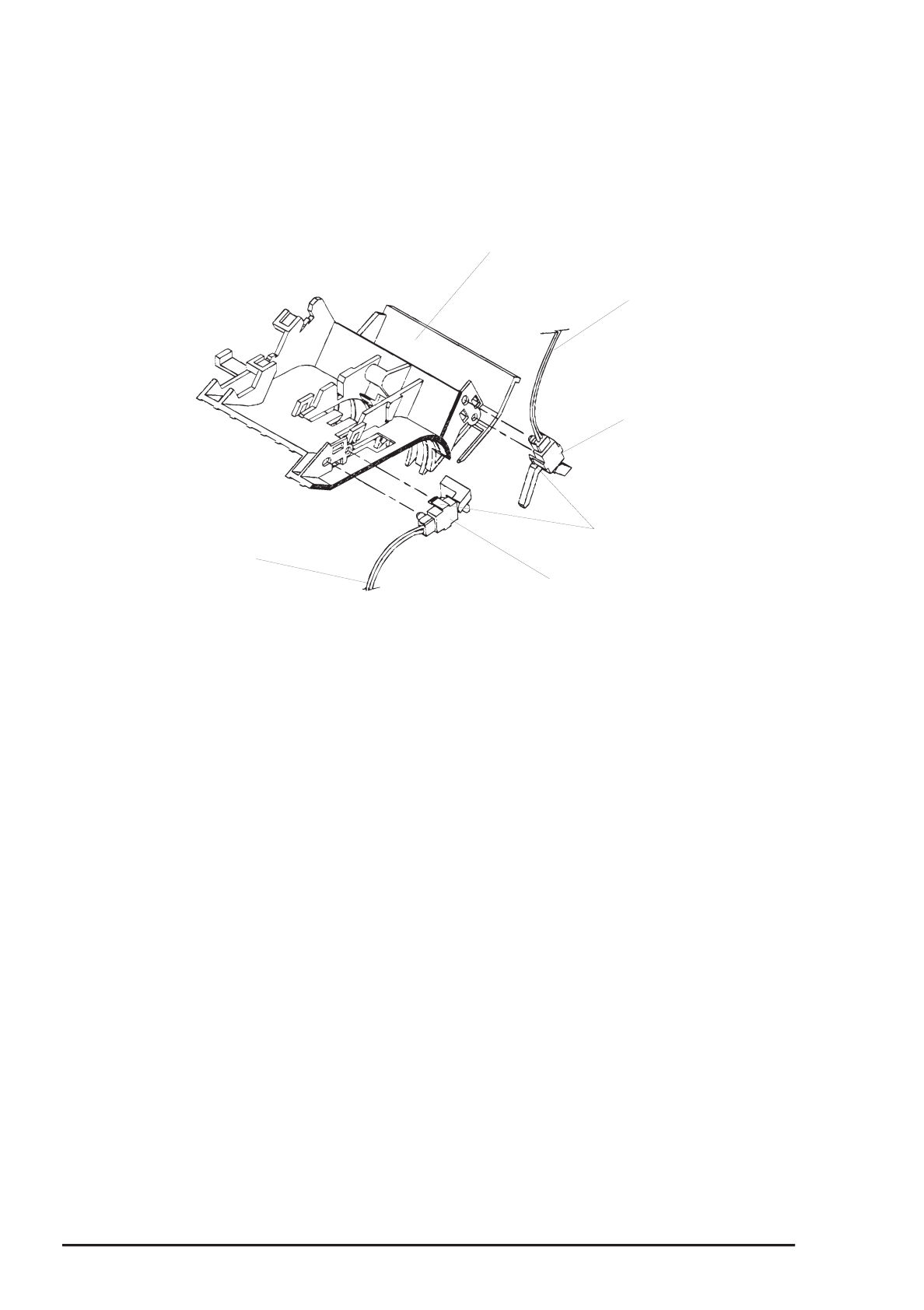

Figure 3-17. Front/Rear PE Sensor Removal
