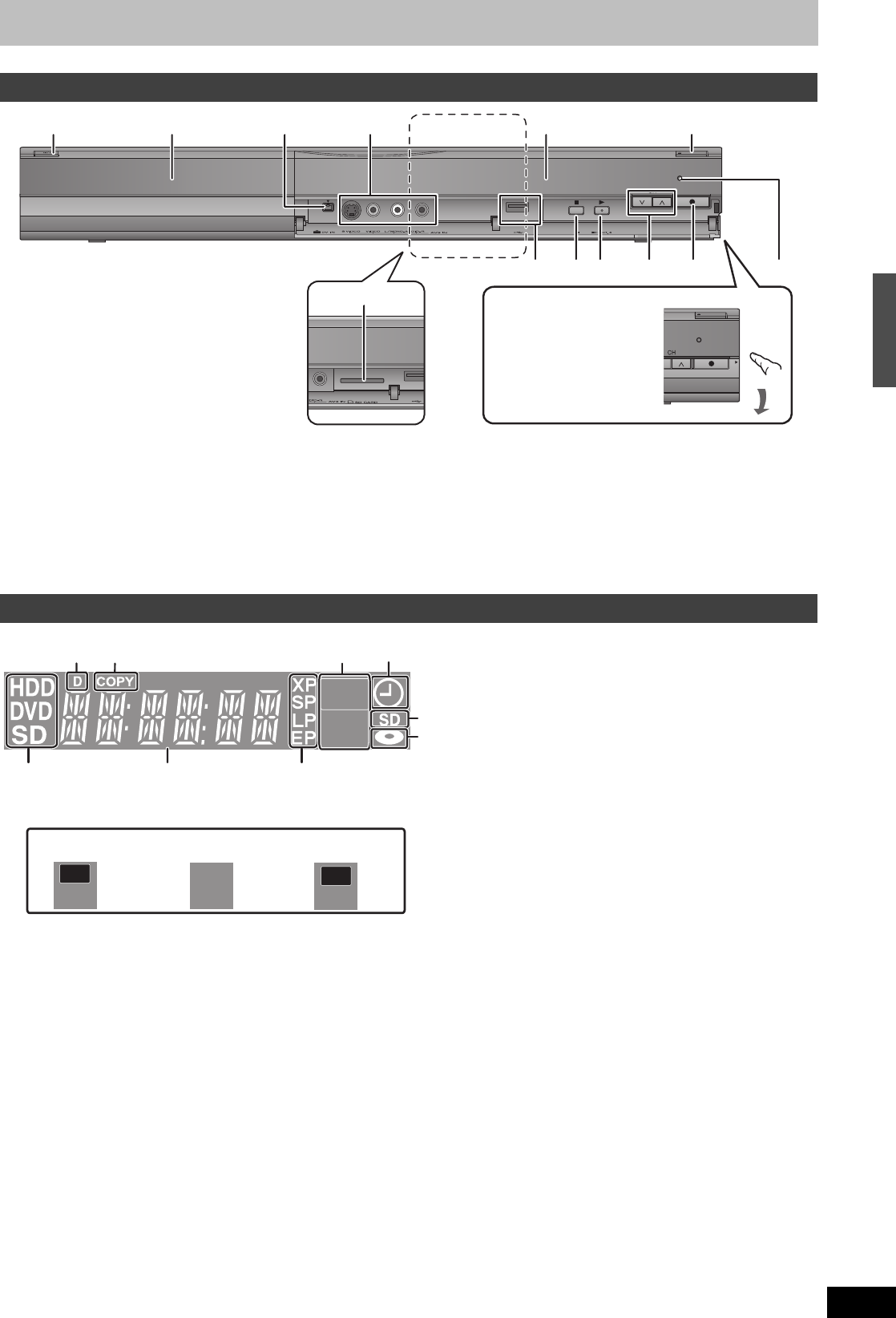

1Standby/on switch (/I) (➡ 9)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
2Disc tray (➡ 14)
3Connection for digital video (DV) camcorder (➡ 23)
4Connection for VCR, camcorder etc. (➡ 23)
5Display (➡ below)
6Open/close disc tray (➡ 14)
7USB port (➡ 14)
8Stop (➡ 17, 28)
9Start play (➡ 16)
:Channel select (➡ 17)
;Start recording (➡ 17)/Specify a time to stop recording (➡ 17)
<Remote control signal sensor
=[EX88] SD card slot (➡ 14)
Rear panel terminals (➡ 8, 68, 69, 70, 71)
4Timer recording indicator
5[EX88] SD card slot indicator
6Disc indicator
7Drive [HDD, DVD or SD ([EX88])] indicator
8Main display section indicator
9Recording mode indicator
Main unit
OPE N
/
CLOSE
REC
OPE N
/
CLOSE
REC
1 2 5 6
89 ;
=
[EX88]
3 4
7 : <
Pull to flip down the front
panel.
The unit’s display
PLAY
PLAY
REC
REC
PLAY
REC
1
2
4
3
7
8
5
6
9
1 Digital broadcast indicator
Lights when the unit is receiving digital broadcast or TV Guide data.
2 Copying indicator
3
Recording
indicator
Playback
indicator
Recording/Playback
indicator
[EX88]
Control reference guide
