15 of 70
ISSUED: 10-30-09 SHEET #: 095-9299-11 03-22-12

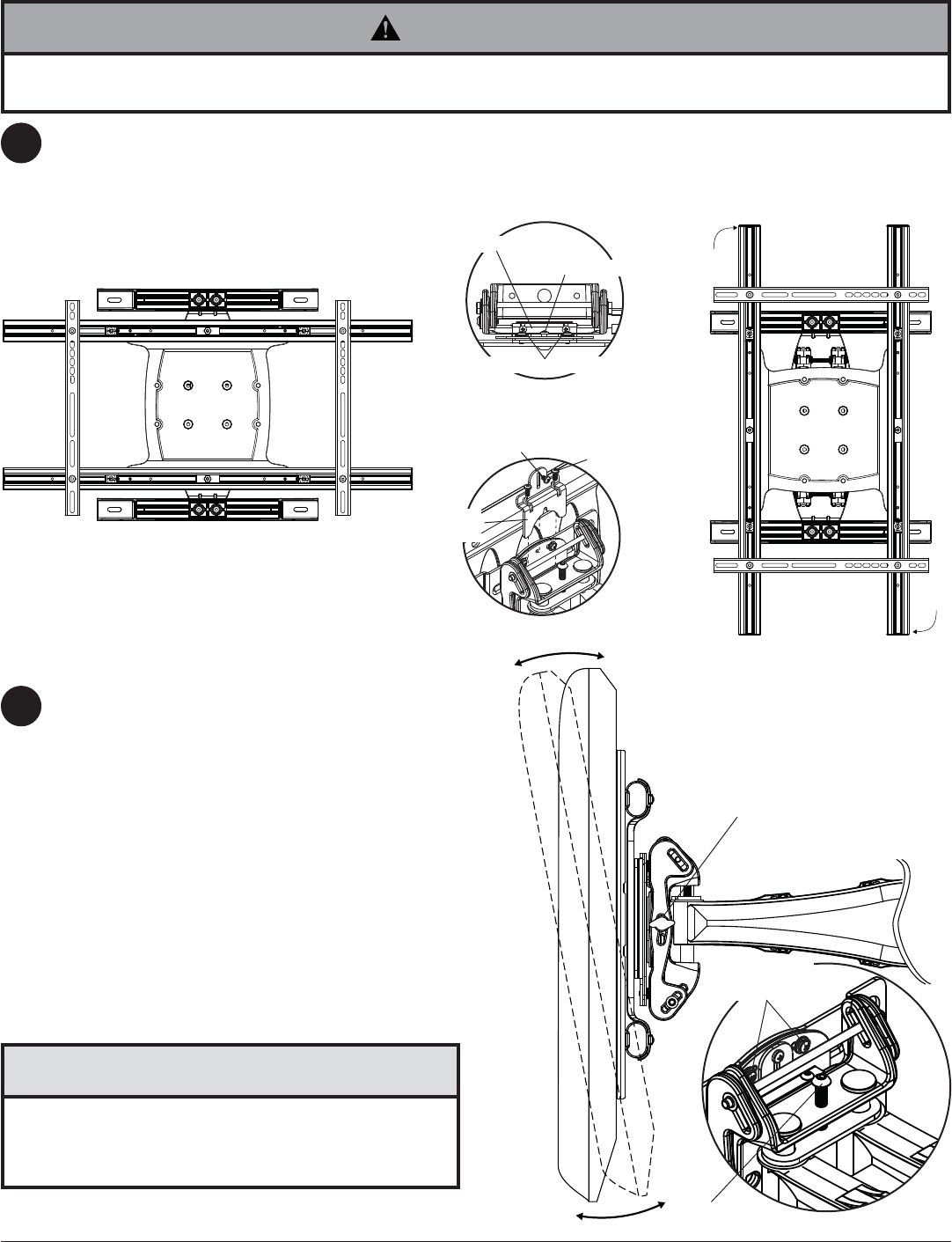

fi g. 6.1
TILT Adjustment: Adjust tension knob on side of
mount to desired tension to enable tilt adjustment
and balance your display size and weight. Push
or pull from top or bottom of display to adjust tilt
as shown. The tilt can be adjusted to a maximum
of 10° forward or 5° backward. Retighten tension
knob. NOTE: For larger displays, tension screw on
opposite side of mount may need to be tightened
using 5/32" allen wrench (P).
ROLL Adjustment:
Rotate display 5° clockwise or
counter-clockwise, level display then tighten
M5 x 10 mm roll screws using 5 mm allen wrench (I)
as shown in detail 2.
FOR VERTICAL HEIGHT ADJUSTMENT: Tighten
or loosen M8 x 40 mm screw to achieve ± 1" of
vertical height adjustment as shown in detail 2.
7
• Do not tighten screws with excessive force.
• Be careful not to pinch fi ngers when opening and
closing mount from the wall.
CAUTION
TENSION KNOB
DETAIL 2
M5 X 10 MM
SCREWS
M8 X 40 MM
SCREW
Adjustment of Flat Panel Display
6
• M10 x 15 mm screws (E) must be securly tightened before changing orientation of wall arm assembly (A). Failure to
lock adapter bracket can cause display to come off of mount.
WARNING
FOR PORTRAIT OR LANDSCAPE DISPLAY ORIENTATION: Remove two M5 x 12mm screws, one M5 x 6mm
screw and rotation block from top of tilt head as shown in top view and rear view. Gently grasp sides of display and
rotate display into portrait or landscape position as shown in fi gure 6.1 and reinstall rotation block with two
M5 x 12mm screws and one M5 x 6mm screw. NOTE: M5 x 6mm screw required in landscape orientation only.
REAR VIEW
TOP VIEW
ROTATION BLOCK
M5 X 12MM SCREWS
M5 X 6MM SCREWS
M5 X 12MM
SCREWS
M5 X 6MM
SCREWS
ROTATION
BLOCK
