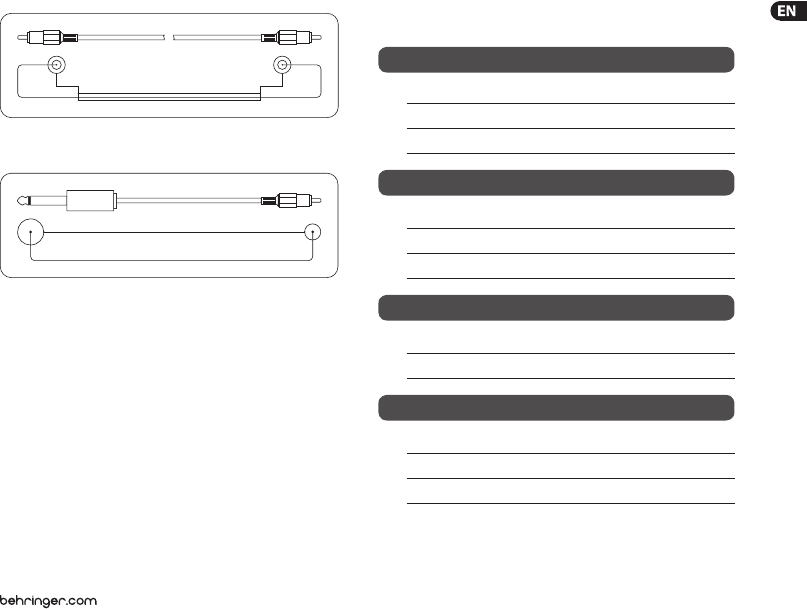

11 U-CONTROL UCA202 User Manual
shield
sleevesleeve
tip tip
Fig. 5.1: RCA cable
sleevesleeve
tiptip
Fig. 5.2: Adapter cable with ¼" jack
5.2 Headphones connection
The UCA202 is provided with a headphones jack. Here,
you canconnect any standard pair of stereo headphones
with a⁄"TRSconnector.
6. Specications
Line In
Connectors RCA, unbalanced
Input impedance approx. 27 kΩ
Max. input level 2 dBV
Line Out
Connectors RCA, unbalanced
Output impedance approx. 400 Ω
Max. output level 2 dBV
Digital Output
Socket Toslink, optical cable
Output format S/PDIF
Phones Out
Socket ⁄" TRS stereo jack
Output impedance approx. 50 Ω
Max. output pegel -2 dBu, 2 x 3,7 mW @ 100 Ω
