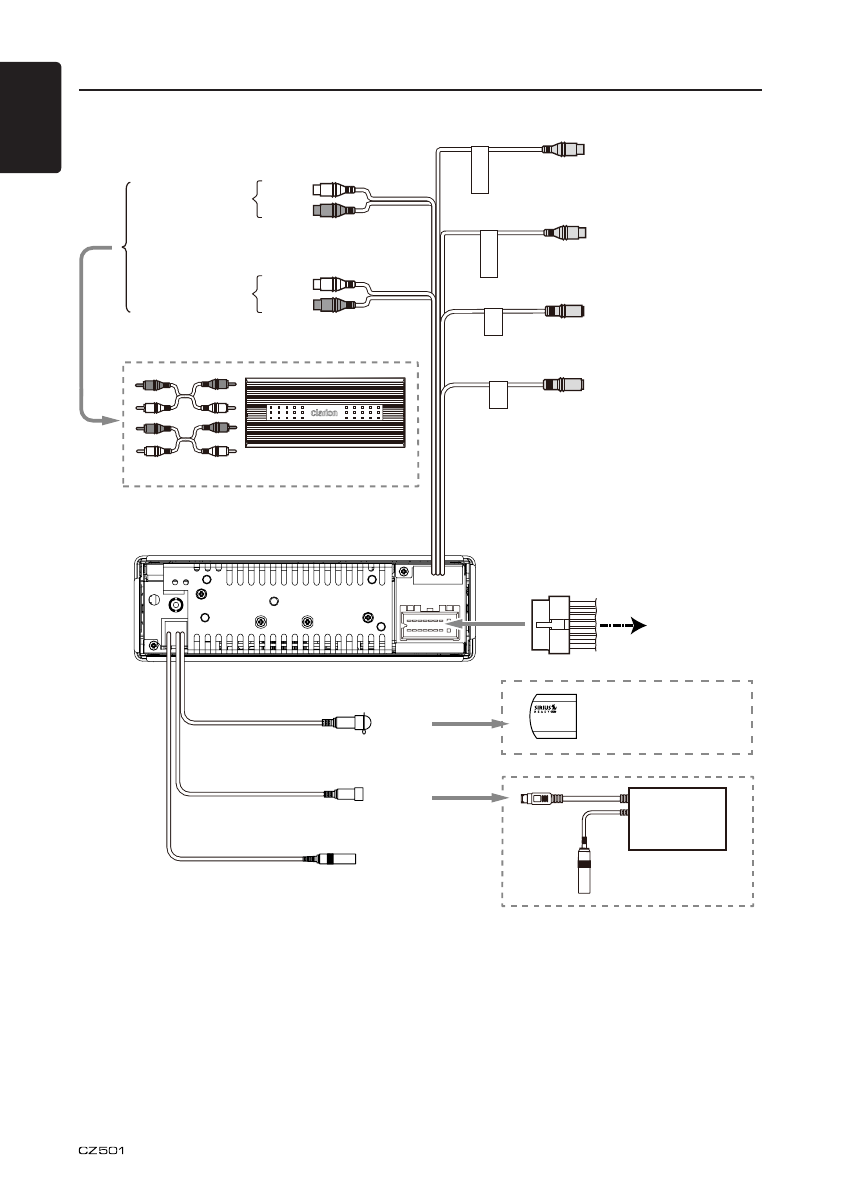

7) Wiring and Connections
Rear audio
output terminal
Front audio
output terminal
Purple
Purple
4 Channel Amplier
Black
Black
Gray
White
White
Left
Left
Right
Right
Red
Red
Black
Black
SIRIUS
HD BUS
Antenna
Black
Black
Refer to next page
Steering wheel
control terminal
External Microphone
(RCB-199:Sold by separately)
Subwoofer output 1
Subwoofer output 2
HD RADIO
THD301
(Sold by separately.)
SIRIUS Connect™
Vehicle Tuner (SC-C1)
(Sold by separately)
