Directed Electronics OHD1202 Car Video System User Manual



© 2005 Directed Electronics, Inc.
CCoonnttrroollss
MMOONNIITTOORR

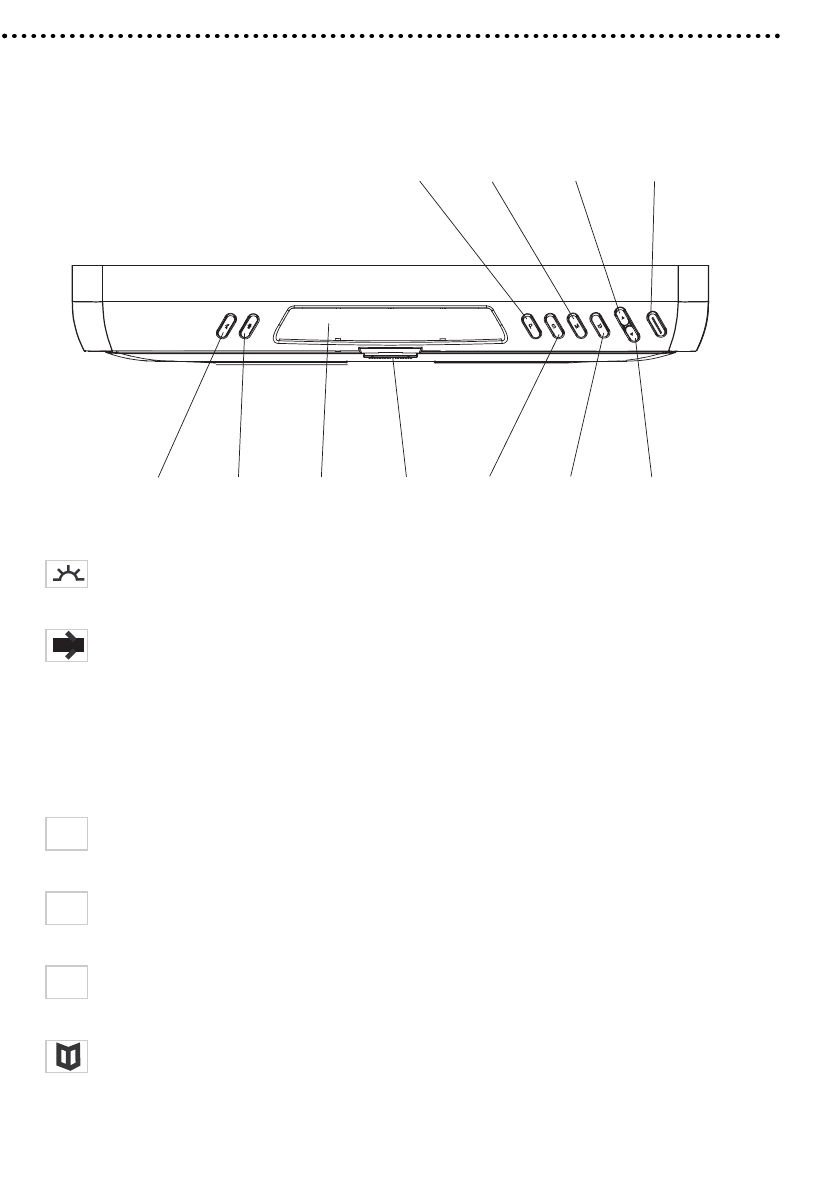

1. COURTESY LIGHT—Activate this switch to "ON/OFF" to activate the dome lights on the
monitor.
2. DOOR LIGHT On/Off—Engage this switch to have the door open switch activate
the dome lights.
3. IR Transmitter/Receiver—Infrared transmitter and receiver which transmits the audio to the
headphones and receives commands from the remote control.
4. OPEN/CLOSE—The latch to open or close the LCD screen.
5. PICTURE—Each press of this button activates the Picture-In-Picture (PIP), split screen,
or normal feature.
6. SOURCE—Selects the source to be used for the monitor (DVD, AV1, or AV2). This button
will select the source for PIP or split screen mode, if PIP or split screen are active.
7. MODE—Selects Full, Normal, Wide, or Zoom video presentation. It will select 4:3 or 16:9
for PIP video presentation, if PIP is active.
8. MENU—Used to set FM Frequency, Brightness, Contrast, Saturation, Hue, or Reset (menu
parameters). The menu will exit if no action is taken within a few seconds.
M
S
P
123468 10
57 9 11
9
