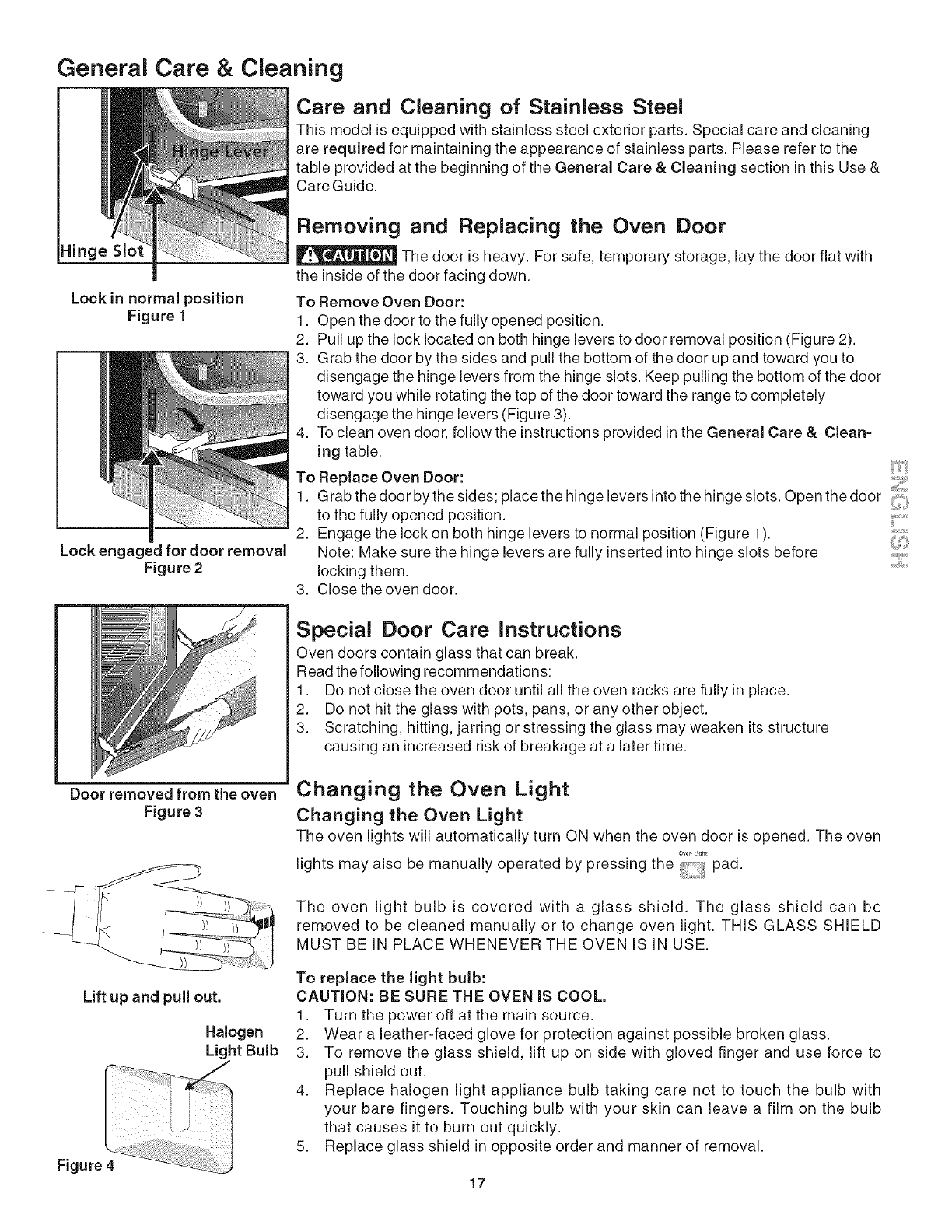

General Care & Cleaning
Care and Cleaning of Stainless Steel
This model is equipped with stainless steel exterior parts. Special care and cleaning
are required for maintaining the appearance of stainless parts. Please refer to the
table provided at the beginning of the General Care & Cleaning section in this Use &
Care Guide.
Hinge Slot
Lock in normal position
Figure I
Lock engaged for door removal
Figure 2
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with
the inside of the door facing down.
To Remove Oven Door:
1. Open the door to the fully opened position.
2. Pull up the lock located on both hinge levers to door removal position (Figure 2).
3. Grab the door by the sides and pull the bottom of the door up and toward you to
disengage the hinge levers from the hinge slots. Keep pulling the bottom of the door
toward you while rotating the top of the door toward the range to completely
disengage the hinge levers (Figure 3).
4. To clean oven door, follow the instructions provided in the General Care & Clean=
ing table.
To Replace Oven Door:
1. Grab the door by the sides; place the hinge levers intothe hinge slots. Open the door _,:
to the fully opened position. ......
2. Engage the lock on both hinge levers to normal position (Figure 1).
Note: Make sure the hinge levers are fully inserted into hinge slots before
locking them.
3. Close the oven door.
Special Door Care Instructions
Oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
Door removed from the oven
Figure 3
Changing the Oven Light
Changing the Oven Light
The oven lights will automatically turn ON when the oven door is opened. The oven
Oven L_g_t
lights may also be manually operated by pressing the _i! pad.
The oven light bulb is covered with a glass shield. The glass shield can be
removed to be cleaned manually or to change oven light. THIS GLASS SHIELD
MUST BE IN PLACE WHENEVER THE OVEN IS IN USE.
Lift up and pull out.
Halogen
Light Bulb
To replace the light bulb:
CAUTION: BE SURE THE OVEN IS COOL.
t. Turn the power off at the main source.
2. Wear a leather-faced glove for protection against possible broken glass.
3. To remove the glass shield, lift up on side with gloved finger and use force to
pull shield out.
4. Replace halogen light appliance bulb taking care not to touch the bulb with
your bare fingers. Touching bulb with your skin can leave a film on the bulb
that causes it to burn out quickly.
5. Replace glass shield in opposite order and manner of removal.
17
