      25
Pinout and Packaging

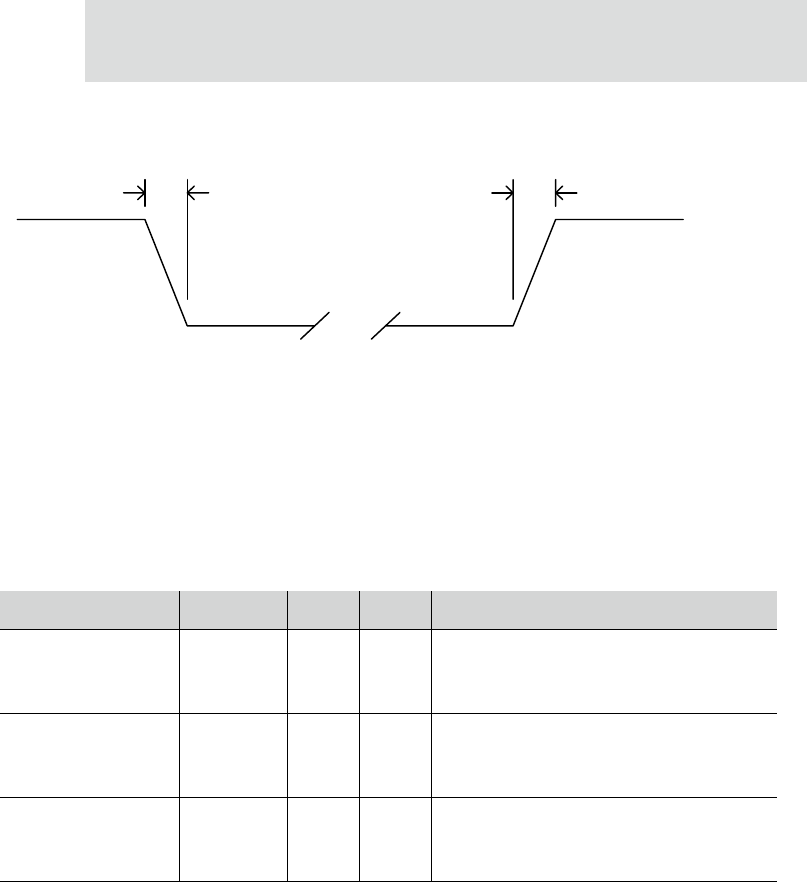

This figure shows the timing and specification for RESET_ rise/fall times:
System mode (test support)
PLLTST_, BISTEN_, and SCANEN_ primary inputs control different test modes for both
functional and manufacturing test operations. See Chapter 5, "SYS Module," for more
information.
tR max = 18ns
Vin = 0.8V to 2.0V
tF max = 18ns
Vin = 2.0V to 0.8V
tF tR
Symbol Pin I/O OD Description
PLLTST_ N15 I Encoded with BISTEN_ and SCANEN_
Add an external pullup to 3.3V or
pulldown to GND.
BISTEN_ M15 I Encoded with PLLTST_ and SCANEN_
Add an external pullup to 3.3V or
pulldown to GND.
SCANEN_ L13 I Encoded with BISTEN_ and PLLTST_
Add an external pullup to 3.3V or
pulldown to GND.
Table 12: System mode and system reset pinout
