34-EN
Accessories

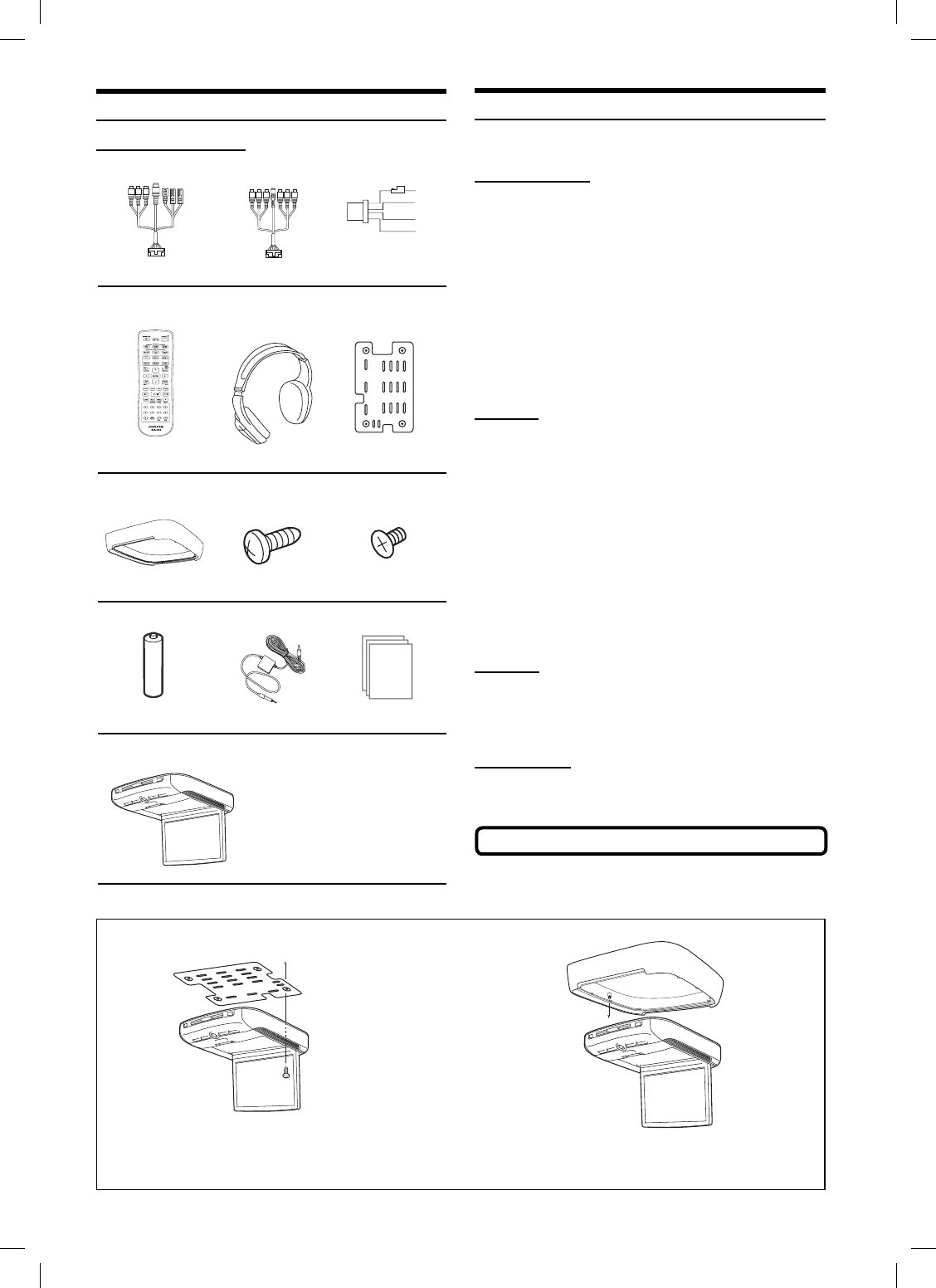

Check accessory parts.
AV Connector 1 AV Connector 2 Power Connector
X 1 X 1 X 1
RUE-4159 Universal
Remote Control
SHS-N100 Single
Source Wireless IR
Headphone
Installation Bracket*1
X 1 X 1 X 1
Trim Ring*2
Screws (for
Installation Bracket)
Screws (for Trim Ring)
X 1 X 4 X 6
AAA Battery
FM Switching Box Document
X 4 X 1 X 1
Built-in DVD Overhead Monitor
X 1
Installation of Bracket and Trim Ring
Specifi cations
Video Display System NTSC/PAL Compatibility
DISPLAY SCREEN
Size 10.2”
Width 221mm (8.70”)
Height 132mm (5.20”)
Aspect Ratio 16:9
Type Transparent type TN
Liquid Crystal Display
System TFT-LCD, Active Matrix
Number of Elements 800(W) x 480(H) x 3
1.152M pixels (VGA)
Effective Number of 99.9% or more
Elements
Back Light Cold Cathode Fluorescent
Lamp
GENERAL
Operating Voltage 10 – 16 V DC
(Typical: 12V)
Power Consumption 2.35A (MAX)
1.60A (TYP)
140mA (Stand by)
Video Input 1.0V p-p 75ohm
Audio Input 2.0V rms (max)
IR Transmitter CH A: 2.3MHz / 2.8MHz
CH B: 3.2 MHz / 3.8MHz
FM Modulator 8.1MHz - 92.1MHz
PLL Frequency
Synthesizer
Operating Temperature -4 ˚F to +158 ˚F (-20 ˚C
to + 70 ˚C)
MONITOR
Width 305 mm (12.01”)
Depth 305 mm (12.01”)
Height 52 mm (2.05”)
Weight 2.27Kg (5.0lbs)
ACCESSORIES
Weight 1.22Kg (2.7lbs)
*1 Installation Bracket is used to stabilize the monitor at the time
of installing the monitor. Ask ALPINE dealer for detail.
*2 Trim Ring is used to make the monitor suitable to your vehicles
ceiling shape at the time of installing the monitor. Ask ALPINE
dealer for detail.
x 4 x 6
CAUTION
(Bottom side of player)
CAUTION-Laser radiation when open, DO NOT STARE INTO BEAM
