Clarion OHM102/OHM153 Car Video System User Manual

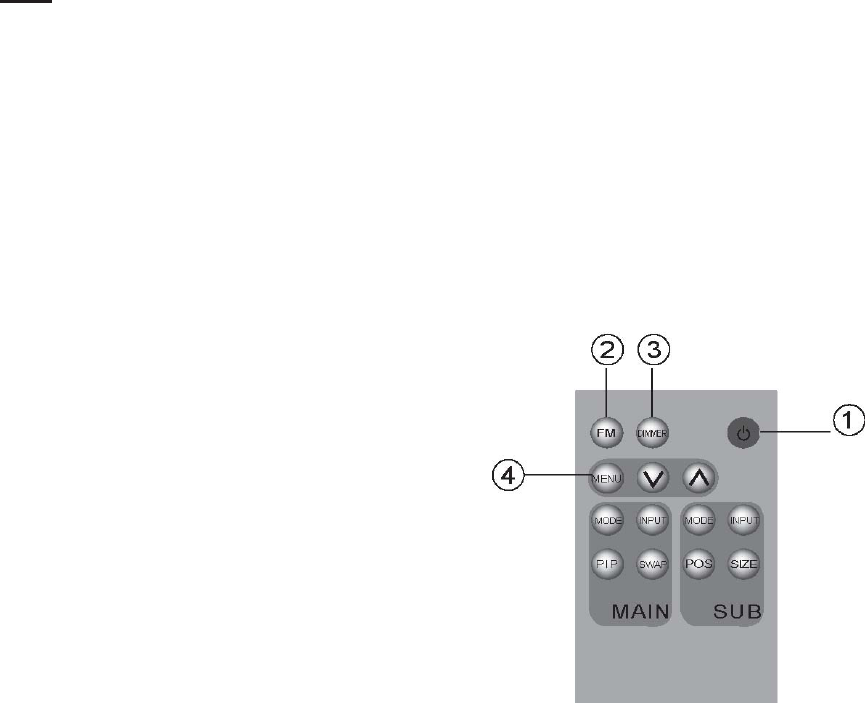

SUB
POS button
Press to select the location of the PIP (Picture In Picture) image.
SIZE button
Press to select the size of the PIP (Picture In
Picture) image.
INPUT button
Press to select AV source for Sub Screen.
Mode button
Press to change the screen format: Normal,
Full, Zoom, and Wide.
Battery Installation
1. Slide the battery-retaining clip in, while sliding the battery tray out.
2. Insert the CR2025 lithium battery into the tray with the “+” facing upwards.
3. Slide the battery tray back into the remote control.
Note: Under normal conditions the battery should last approximately one year. When the
battery becomes weak, the transmitting range of the remote control will shorten.
Replacing the battery with anything other then a CR2025 battery can damage the remote control.
