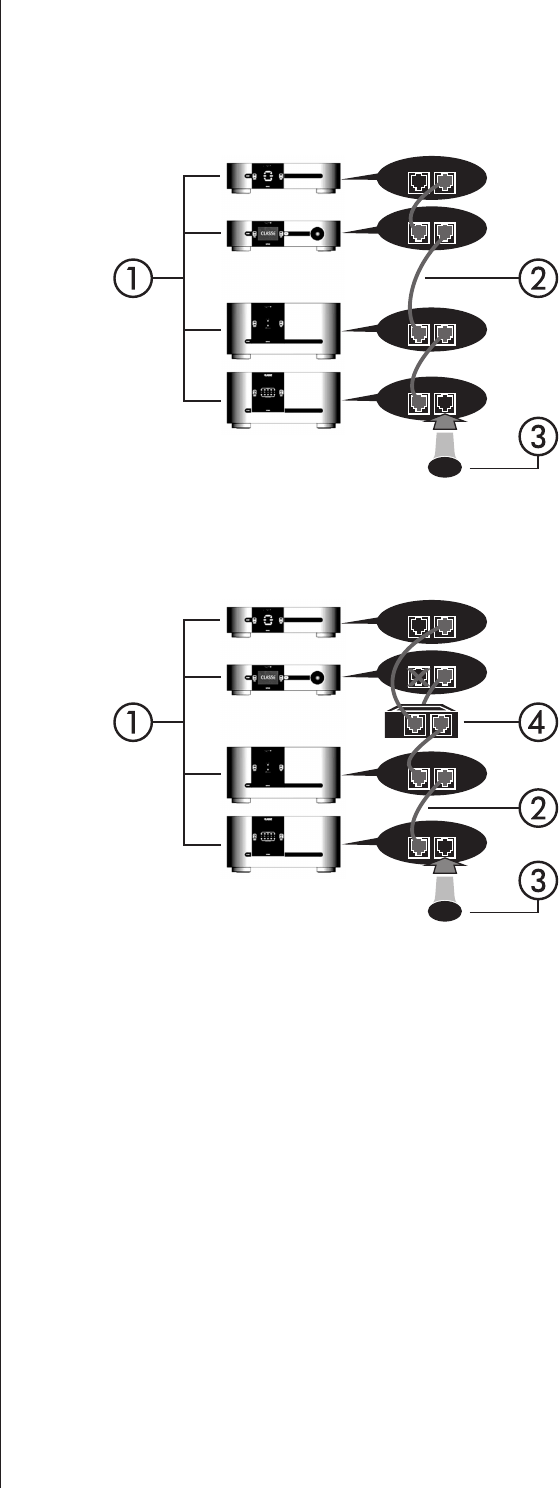

ediagramsbelowillustratehowtoconnecttheCAN-Bushardware.
Any combination of models in any order.
OUT
CAN-BUS
IN
OUT
CAN-BUS
IN
OUT
CAN-BUS
IN
OUT
CAN-BUS
IN
For any system with SSP-300 or SSP-600.
OUT
CAN-BUS
IN
OUT
CAN-BUS
IN
OUT
CAN-BUS
IN
OUT
CAN-BUS
IN
NOTE:DaisychainmayneedtobeterminatedwithCAN-BusTerminator.
