QUICK REFERENCE GUIDE
Quick reference guide
D Battery case— optional for some versions
When using a BP-226
BATTERY CASE
attached to the trans-
ceiver, install 5 AA (LR6) size alkaline batteries as illustrated
at right.

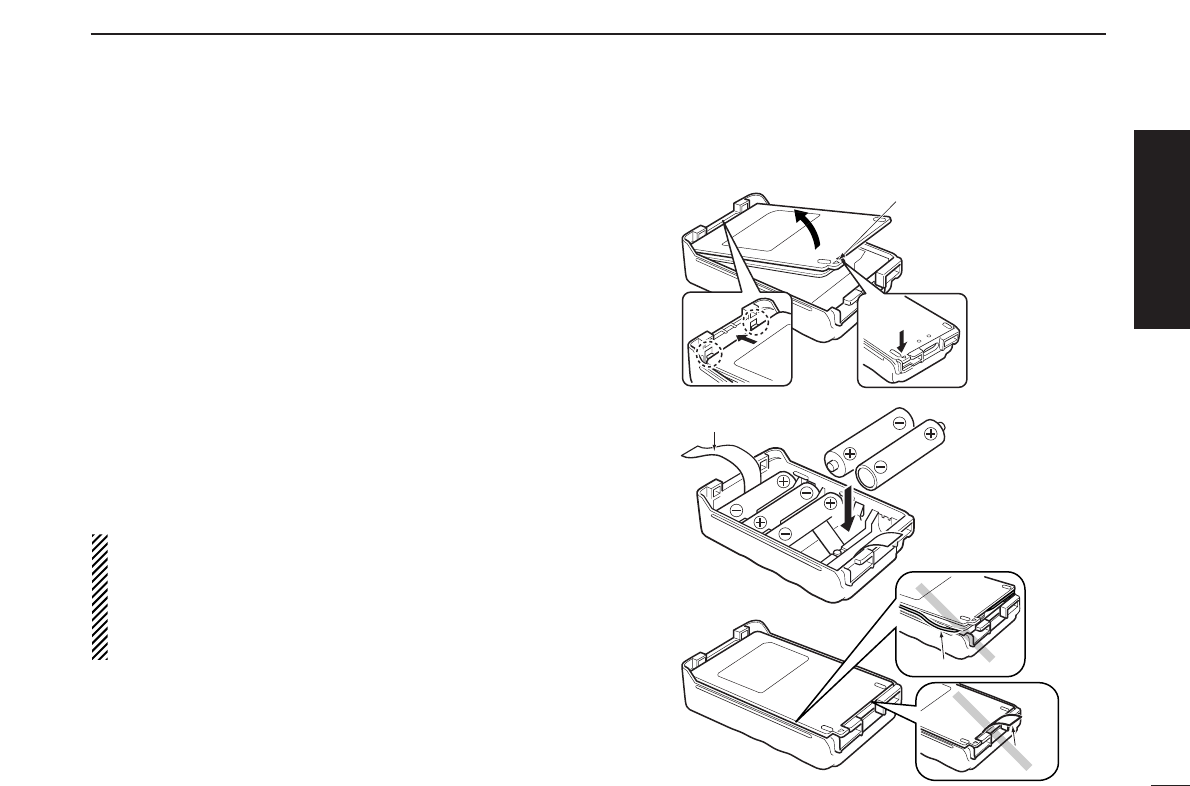

q Hook your finger under the latch, and open the cover in the
direction of the arrow (q). (Fig.1)
w Then, install 5 × AA (LR6) size alkaline batteries. (Fig.2)
• Install the alkaline batteries only.
• Be sure to observe the correct polarity.
• Do not pin the ribbon under the batteries.
e Close the cover with fitting in the direction of the arrow (w)
first, then firm the latch in place (e). (Fig.1)
• Be sure to the gasket and the ribbon are set correctly,
and do not protrude out of the battery case. (Fig.3)
R CAUTION!
• When installing batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new and
old batteries together.
• Keep battery contacts clean. It’s a good idea to clean bat-
tery terminals once a week.
q
w
e
BP-226
Latch
Fig.1
Fig.2
Ribbon
Fig.3
Gasket
Ribbon
