SD1513
11
Entering ID3 Tag
This unit supports ID3 tag versions 1.0 and 1.1.

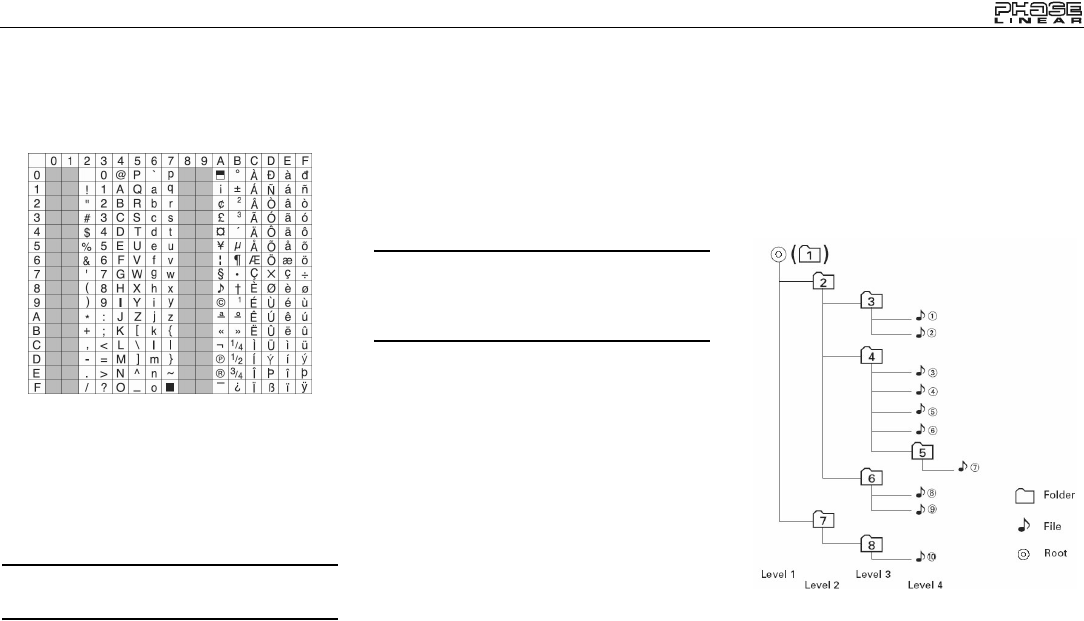

For the character codes, refer to the table
below.
Entering File and Folder Names
Names using the code list characters are the
only file names and folder names that can be
entered and displayed. Other characters will not
display correctly. The unit recognizes and plays
only files with the MP3/WMA extension.
NOTE: A file name entered with characters
not on the code list may not play correctly.
Writing Files into a Disc
When a disc containing MP3/WMA data is
loaded, the unit checks all data. If the disc
contains many folders or non-MP3/WMA files,
MP3/WMA play will be delayed, it may take
time for the unit to move to the next file, and
searches may not be performed smoothly.
Loading such a disc may produce loud noise
and cause damage to the speakers.
NOTE: Do not attempt to play a disc
containing a non-MP3/WMA file with the
MP3/WMA extension or a disc containing
non MP3/WMA files.
Electronic Shock Protection
• 10 seconds for CDDA (CDA)
• 60 seconds for MP3/WMA recorded at
44.1kHz, 128kbps
Bit Rates
The unit supports bit rates from 32 - 320 kbps.
File Playing Order
When selected for play, files and folders (Folder
Search, File Search or Folder Select) are
accessed in the order they were written by the
CD writer. As a result, the order in which they
are expected to be played may not match the
order in which they are actually played.
You may be able to set the order in which MP3/
WMA are to be played by writing them onto a
disc such as a CD-R with their file names
beginning with play sequence numbers such as
"01" to "99".
For example, a disc with the following folder/file
hierarchy is subject to Folder Search, File
Search or Folder Select as shown below.
