Installation
Installation Location

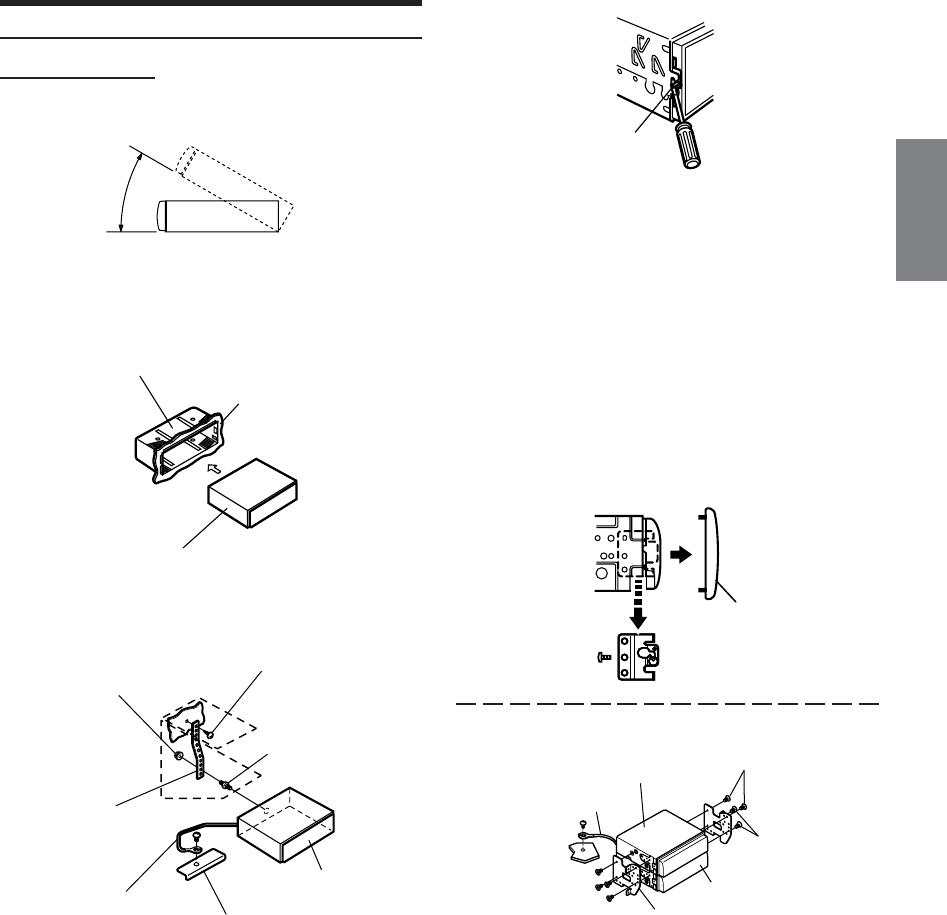

Before deciding on the mounting location, check that opening and
closing the display will not hamper the gear shift in any position.
• Install at an angle of within 35 degrees from the horizontal.
Caution for installation
Be sure to remove the mounting sleeve squarely from the product.
1
Slide the mounting sleeve into the dashboard.
• Remove the wrapping from the unit.
2
Reinforce the head unit with the metal mounting strap (not
supplied). Secure the ground lead of the unit to a clean metal
spot using a screw (∗1) already attached to the vehicle's
chassis.
•For the screw marked ∗2, use an appropriate screw for the chosen
mounting location.
Connect each input lead coming from an amplifier or equalizer
to the corresponding output lead coming from the left rear of
the DVA-5210. Connect all other leads of the DVA-5210
according to details described in the CONNECTlONS section.
3
Slide the DVA-5210 into the dashboard. When the unit is in
place, make sure the locking pins are fully seated in the down
position. This can be done by pressing firmly in on the unit
while pushing the locking pin down with a small screwdriver.
This ensures that the unit is properly locked and will not
accidentally come out from the dashboard. Install the
Detachable Front Panel.
Removal
1 Use a small screwdriver (or similar tool) to push the
locking pins to the “up” position (see above drawing).
As each pin is unlocked, gently pull out on the unit to
make sure it does not re-lock before unlocking the
second pin.
2 Pull the unit out, keeping it unlocked as you do so.
<JAPANESE CAR>
• Secure the ground lead of the unit to a clean metal spot using a
screw (*3) already attached to the vehicle's chassis.
Metal
Mounting
Strap
Chassis
Hex Nut (M5)
Bolt Stud
Ground Lead
∗2
∗1
DVA-5210
Screw
Lock Pin
Face Plate
Mounting Sleeve
(Included)
Dashboard
DVA-5210
Mounting Bracket
Ground Lead
Screws (M5 × 8)
(Included)
DVA-5210
Head unit (Ai-NET)
Screws (M5 × 8)
(Included with
the head unit)
*3
