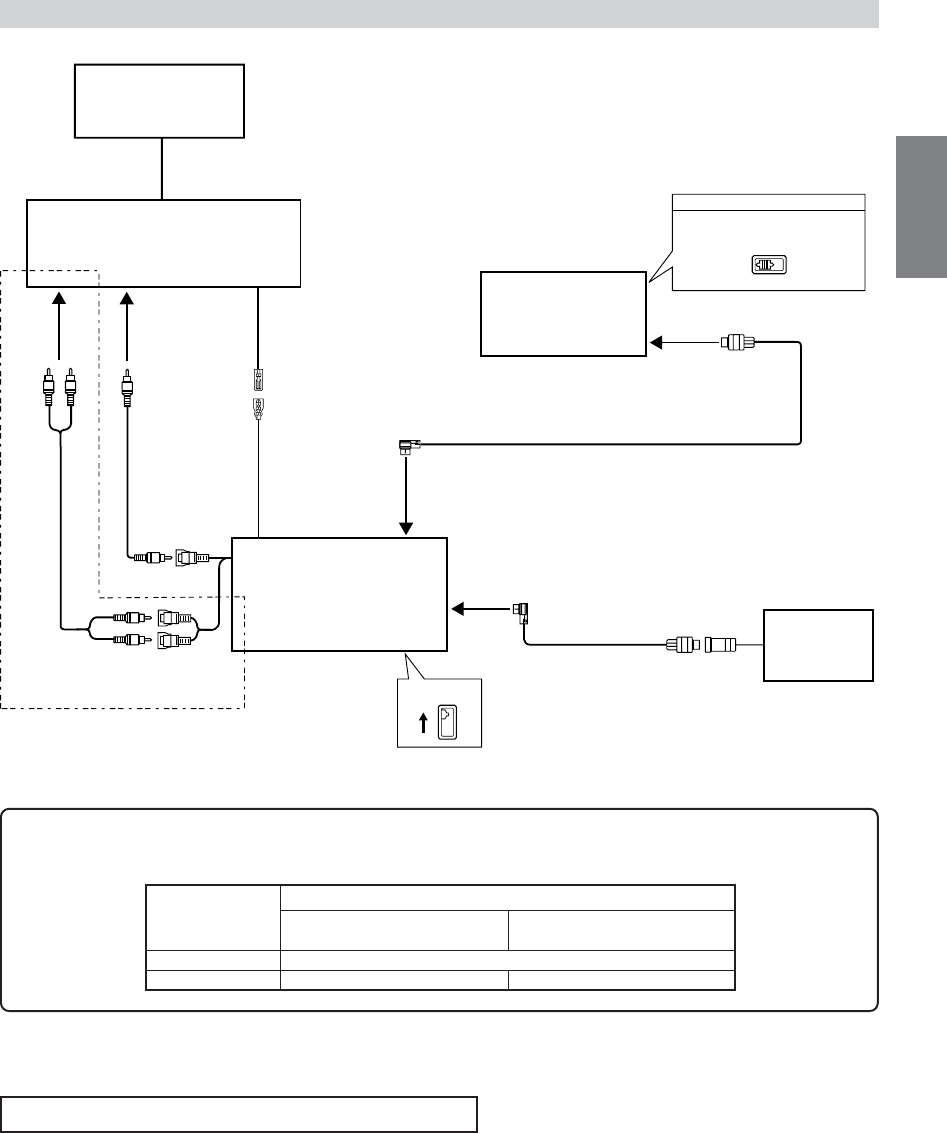

Connecting an Ai-NET compatible Head Unit and TV Monitor
Ai-NET Output
Connector
Ai-NET Cable
Ai-NET Connector
(Black)
Ai-NET Cable
Ai-NET Connector
(Gray)
CD Changer
(Sold Separately)
DVD Player
DVA-5210
Only when connecting with rear monitor
Audio Output
Connector
RCA Extension
Cable
AUX Audio Input
Terminal (AUX1)
AUX Video Input
Terminal (AUX1)
Remote Control
Output Lead (AUX1)
(White/Brown)
Remote Control
Input Lead
(White/Brown)
Video Output
Connector
RCA Extension Cable
Monitor
TME-M790, etc.
(Sold Separately)
AV-Interface Unit
TME-M790, etc.
(Sold Separately)
Head Unit
with Ai-NET
(Sold Separately)
System Switch
NORM
System Switch
1
2
When an Ai-NET digital audio
processor is not used, place this
switch in the NORM position.
Setting of DVA-5210
The DVA-5210's system settings must be made after connections are completed. Before fixing the unit in place, refer to “Setting the
System Switch” on page 32 and “Setting the Ai-NET” on page 21.
• Be sure to switch the head unit’s system switch before turning the power on.
• Also refer to the operating instructions of the other products in the system.
•To connect a rear monitor, connect to the front monitor’s RCA output (TV Tuner Box).
The switched (ignition) power lead connection is not needed.
Setting Item
System switch
Ai-NET setting
Setting
1 (Ai-NET)
AV Head unit available after December
2003 (IVA-D300R, etc.)
FULL
AV Head unit available before January
2004 (IVA-D900R, etc.) or Head unit.
TIME
