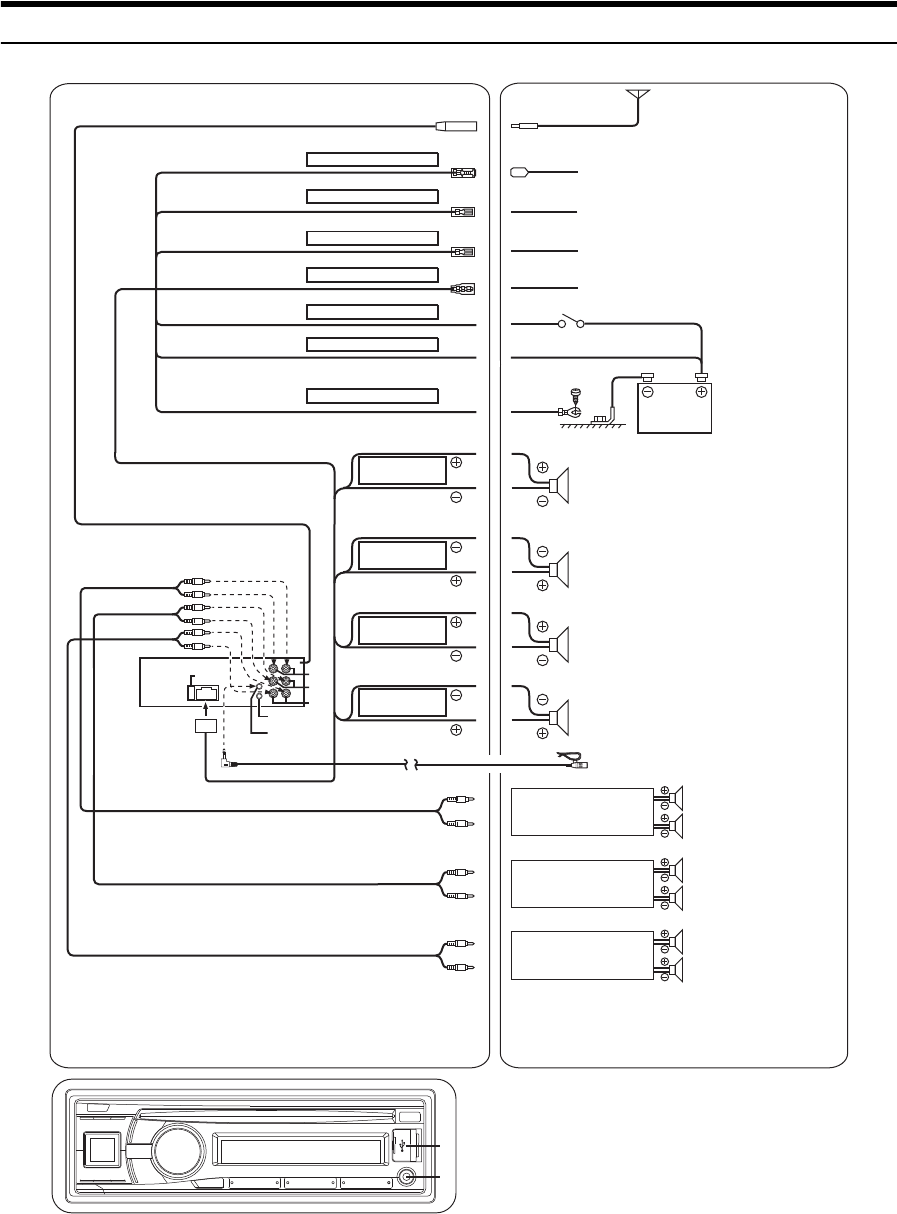

Connections
ILLUMINATION
GND
BATTERY
REMOTE TURN-ON
AUDIO INTERRUPT IN
IGNITION
POWER ANT
Amplier
Amplier
Amplier
Antenna
(Blue)
To power antenna
(Blue/White)
To amplier
(Pink/Black)
Not used
(Orange)
To the instrument cluster illumination
lead
(Red)
Ignition Key
(Yellow)
(Black)
Battery
(Gray)
Speakers
SPEAKER
RIGHT FRONT
Front Right
(Gray/Black)
(Violet/Black)
SPEAKER
RIGHT REAR
Rear Right
(Violet)
(Green)
SPEAKER
LEFT REAR
Rear Left
(Green/Black)
(White/Black)
SPEAKER
LEFT FRONT
Front Left
Front Right
Rear Right
Rear Left
Front Left
Microphone
(White)
Subwoofers
Speakers
