7

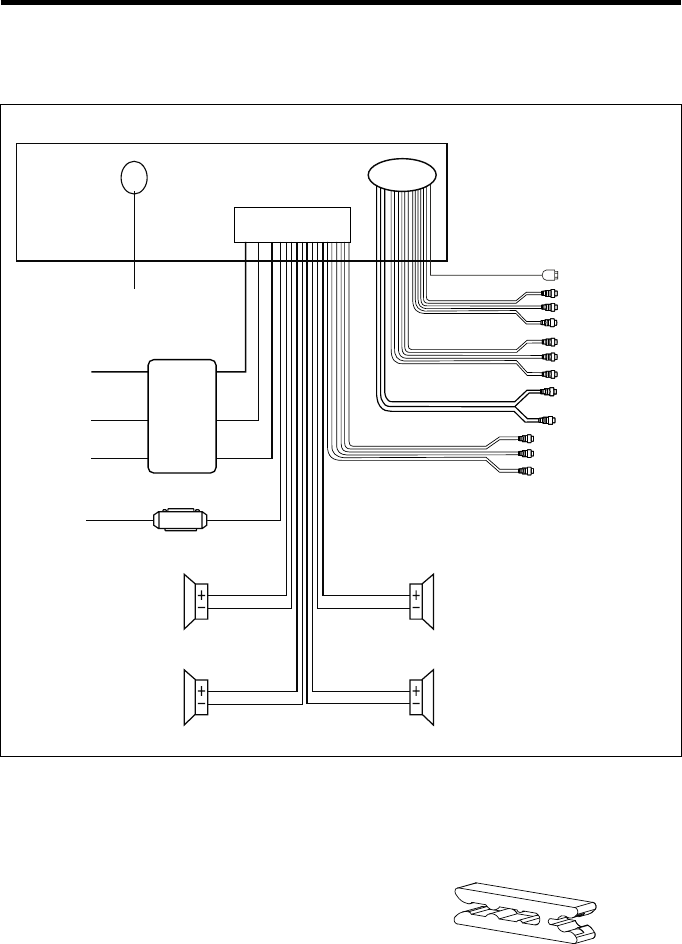

ELECTRIC CONNECTION
WIRING CONNECTION
IGNITION
SWITCH (B+)
MEMORY
BACK-UP (B+)
AUTO
ANTENNA
GROUND (
B-)
RED
YELLOW
BLACK
BLUE
FRONT
Lch SPK.
REAR
Lch SPK.
ANTENNA CONNECTOR
RCA CABLE
FRONT RCA OUTPUTCABLE
FRONT
Rch SPK.
REAR
Rch SPK.
MAIN UNIT
VIDEO IN YELLOW
RCH IN RED
LCH IN WHITE
GREY SUB WOOFER
VIDEO OUT 2 YELLOW
COAXIAL OUT BROWN
RCH RED
LCH WHITE
FRONT
RCA RED R
VIDEO OUT 1 YELLOW
FRONT
RCA WHITE L
(FOR RCA LINE OUT VERSION ONLY)
AUX (optional)
REAR RCA OUTPUT CABLE (OPTIONAL)
FUSED
FILTER
BOX
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
FUSE
USB
NOTE:
The accessory USB clip of this unit as below. On side clip the USB cable, the other
side clip the proper place to fixed the USB cable.
POWER
ANTENNA
