18

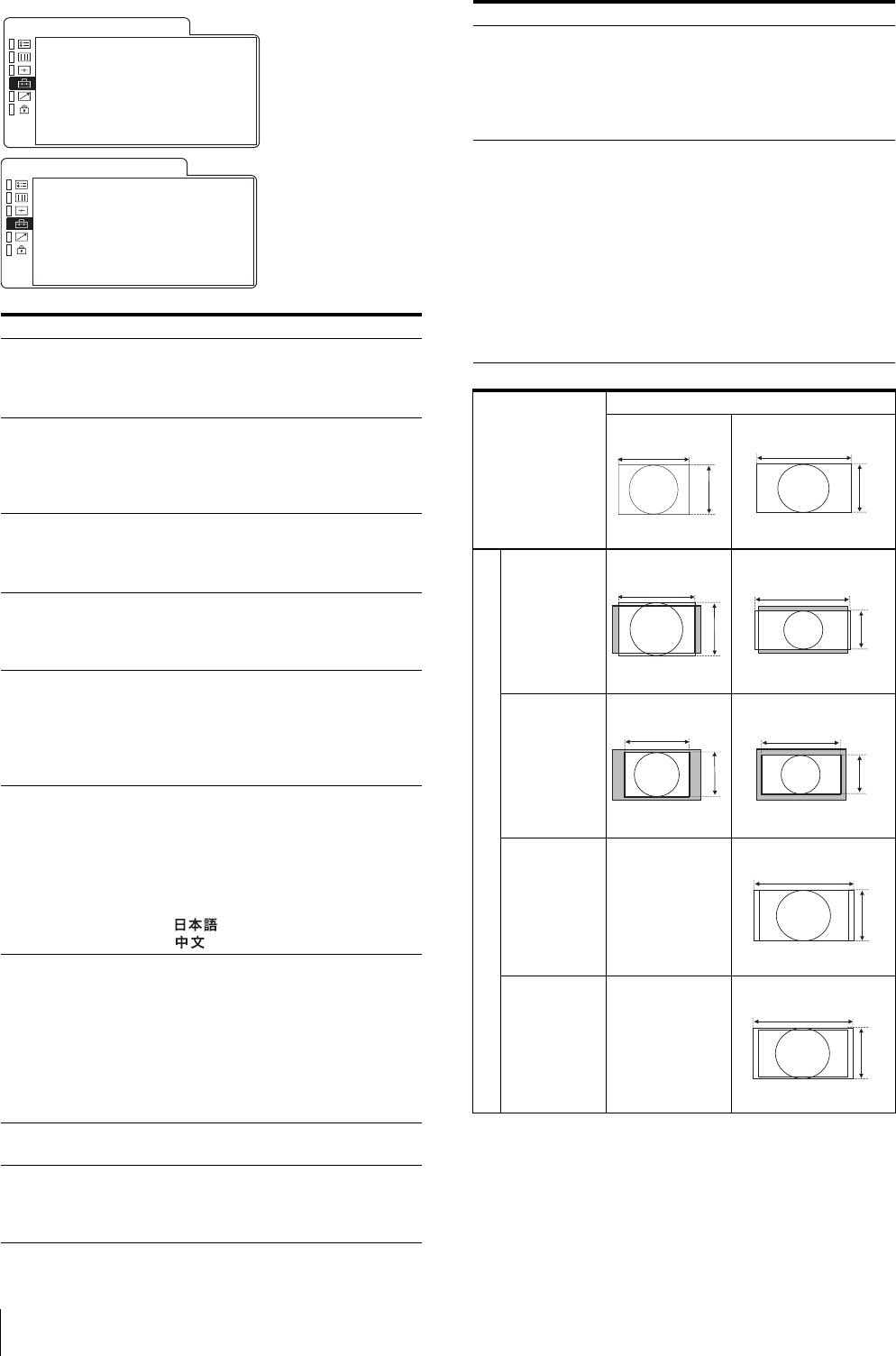

Adjustment Using the Menus
Submenu Setting
RGB/COMP SEL When a signal input via the RGB/
COMPONENT connector is being monitored,
based on the signal being input, select “RGB”
or “COMP” (component).
COMP LEVEL Select the component level from among three
modes.
• SMPTE: for 100/0/100/0 signal
• BETA0: for 100/0/75/0 signal
• BETA7.5: for 100/7.5/75/7.5 signal
NTSC SETUP Select the NTSC setup level from two modes.
The 7.5 setup level is used mainly in North
America. The 0 setup level is used mainly in
Japan.
GAMMA Select the appropriate gamma mode. You can
select from among five settings. When “3” is
selected, the setting is roughly same as the
gamma mode of the CRT (2.2).
FORMAT DISP Select the display mode of the signal format.
• ON: The format is always displayed.
• OFF: The display is hidden.
• AUTO: The format is displayed for about 10
seconds when the input of the signal
starts.
LANGUAGE You can select the menu or message language
from among seven languages.
• ENGLISH: English
• FRANÇAIS: French
• DEUTSCH: German
• ESPAÑOL: Spanish
• ITALIANO: Italian
• : Japanese
• : Chinese
MARKER When the frame of the film is displayed on the
screen, select the aspect ratio according to the
film.
When 16:9 aspect ratio is selected with
the ASPECT select button
You can select either 4:3 or OFF.
When 4:3 aspect ratio is selected with
the ASPECT select button
You can select either 16:9 or OFF.
CENTER MARKER Select “ON” to display the center mark of the
picture and “OFF” not to display.
MARKER LEVEL Sets the luminance to display the “MARKER”
and “CENTER MARKER”.
When the setting is low, the marker is displayed
dark.
xRGB/COMP SEL xxxx
·COMP LEVEL xxxxx
·NTSC SETUP x
·GAMMA x
·FORMAT DISP xxx
·LANGUAGE xxx
USER CONFIG (1/2) Rr
xMARKER xxx
·CENTER MARKER xxx
·MARKER LEVEL x
·SCAN xxxx
·PIC DELAY MIN xxx
USER CONFIG (2/2) Rr
SCAN Sets the scan size of the picture. Select from
“OFF” and “FULL” mode.
• OFF: Changes between over scan and under
scan.
• FULL: Changes to over scan, under scan or
full screen.
PIC DELAY MIN Select to set the delay by the picture processing
to the minimum level when the signal is input.
When 1080I signal is input, “OFF” cannot be
selected.
• OFF: Mode for giving precedence to the
picture quality (recommended mode). It
takes longer than “ON” for processing
the picture.
• ON: The processing time is short. As the line
flicker is displayed in this mode, it is
available for checking the line flicker of
the telop work and so on.
Input
OVER SCAN
(5 % OVER
SCAN)
UNDER SCAN
(–3 % UNDER
SCAN)
FULL
–
FULL (1080)
–
Submenu Setting
4
3
16
9
Output
4
3
16
9
4
3
16
9
16
9
1920
1080
