5. Menu Orientation
Using the Pop-up Keyboard
rëáåÖ=íÜÉ=mçéJìé=hÉóÄç~êÇ
In several switcher menus, you can use a pop-up Keyboard to enter names and
descriptions for various switcher functions. For example:
S On the Input Setup Menu, the Keyboard is used to name inputs, as they’ll
appear on the programmable displays.
S On the Memory Menu, the Keyboard is used to enter brief descriptions of
memory registers.

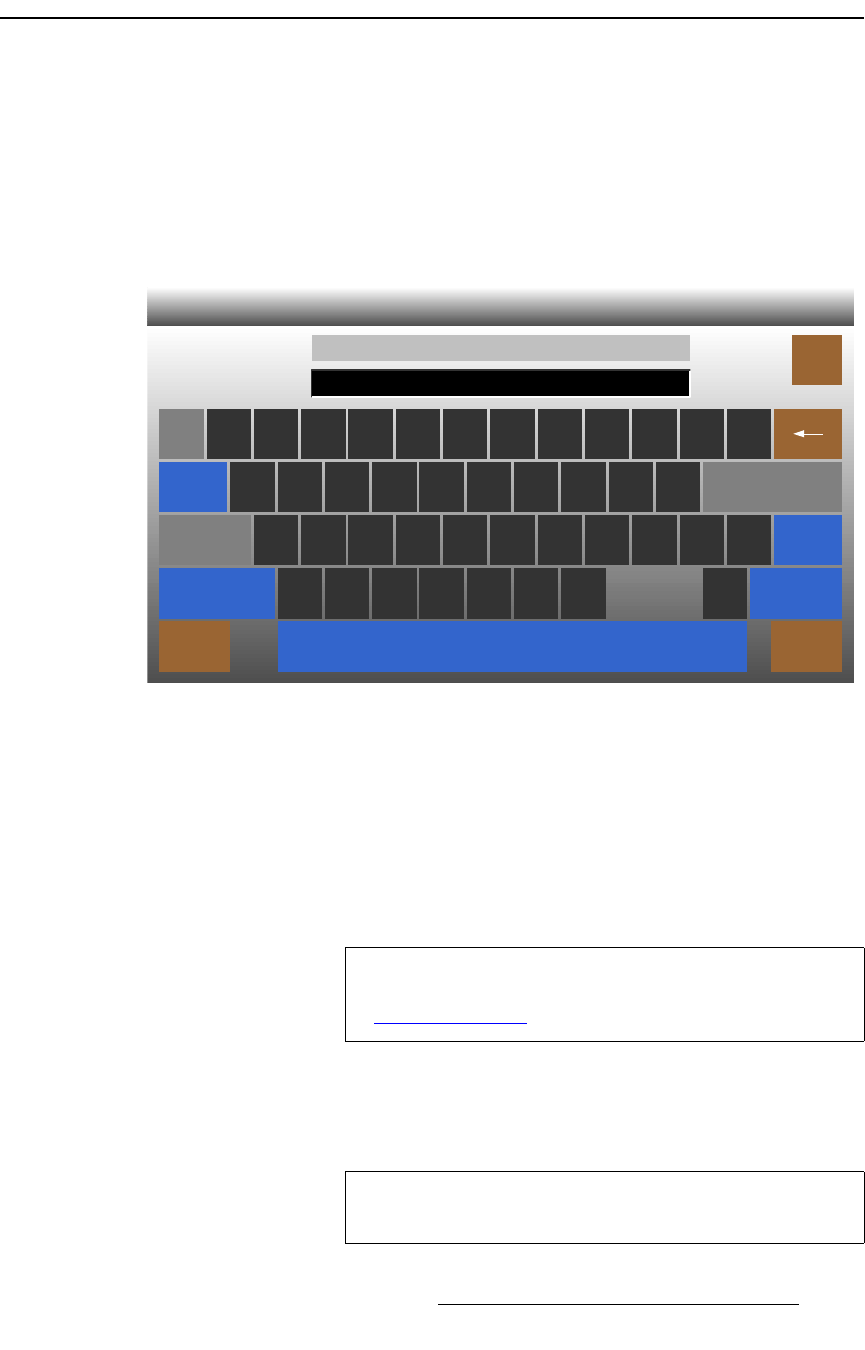

The figure below illustrates a sample
Keyboard, in “name” entry mode:
Figure 5-25. Keyboard (sample)
Please note:
• The top bar provides a prompt for the current action, e.g., entering a name or
entering a description.
• Below the prompt is the entry register, where letters appear as you type.
• To use the keyboard, enter the desired text in the normal manner.
~ Press {Enter} to complete an entry and close the Keyboard.
~ Press {Clear Text} to clear the entry register.
~ Press {Cancel} to cancel an entry and close the Keyboard.
• Press {Caps Lock} to switch between upper and lower case, where applicable.
1 2 3 4 5 6 7 8 9 0 - =
Q W E R T Y U I O P
A S D F G H J K L : +
EnterCaps Lock
Z X C V B N M /
SpaceCancel Cancel
CAM1
Name for input 3. 4 characters max
Clear
Text
Note
In the Memory Menu (in Store Mode), the new entry will not
immediately appear in the register table. Refer to the
“
Naming Registers” section on page 184 for details.
Note
In some modes, such as input name entry, {Caps Lock}
remains on, and not all letters and symbols are available.
