Label Description
3 Tray extender
4 Paper-width guide
5 Print cartridge door
6 Glass
7 Lid backing
8 Rear access door
9 Rear USB port
10 Power connection
*
* Use only with the power adapter supplied by HP.

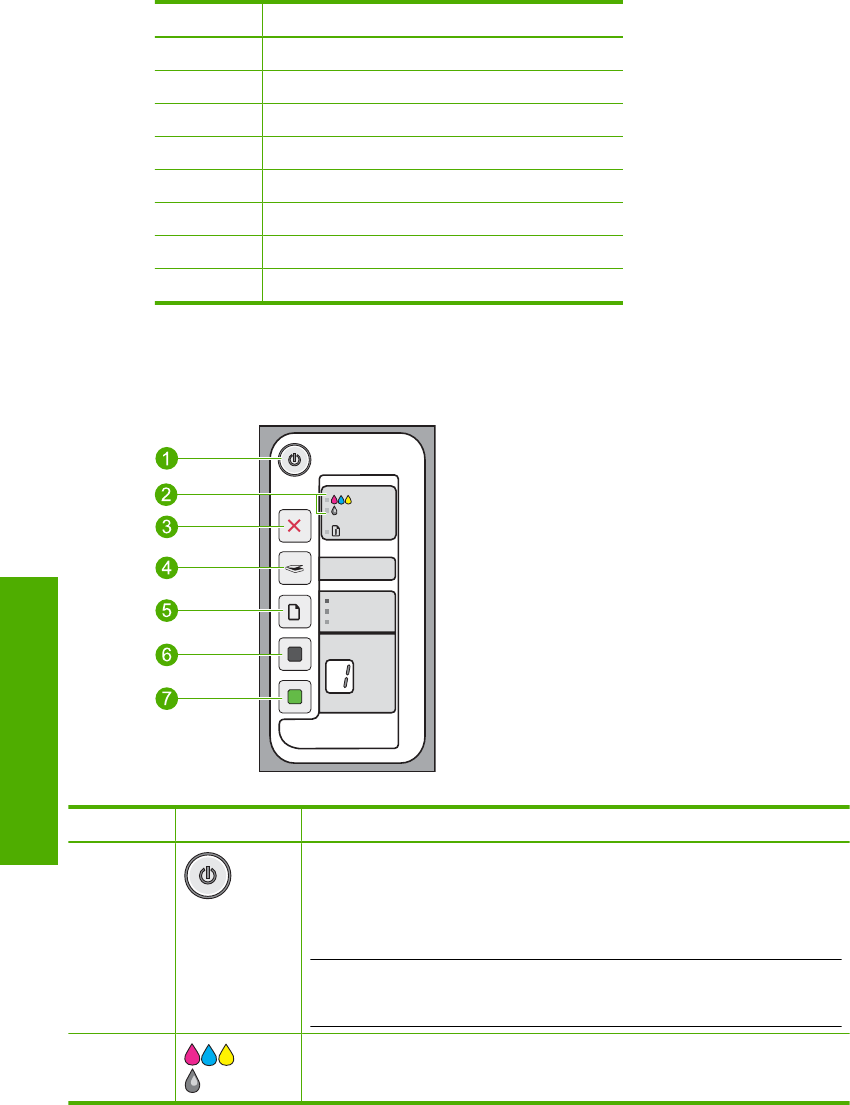

Control panel buttons
Label Icon Name and Description
1 On: Turns the HP All-in-One on or off. The On button is lit when the HP All-
in-One is powered on. The light blinks while performing a job.
When the HP All-in-One is off, a minimal amount of power is still used by the
device. To completely disconnect the power supply to the HP All-in-One, turn
the device off, and then unplug the power cord.
CAUTION: Before you unplug the power cord, you must press the On
button and allow the HP All-in-One to turn itself off. This prevents the print
cartridges from drying out.
2 Check Print Cartridge lights: Indicates the need to reinsert the specified print
cartridge, replace the print cartridge, or close the print cartridge door. The
Black/Photo light indicates that the problem is with the black or photo print
