Chapter 18. Modifying Port Settings
183
LAN HTTP server rather than to the HTTP server on the
Hurricane 9200/S.
Thereafter, when your ISP wants to log on to your
Configuration Manager, they would type your IP address
in their browser, followed by a colon and the non-standard
port number, as shown in this example:
http://10.0.1.16:61000
Your ISP may also have special circumstances that require
changing the port numbers; contact them before making any
changes here.
Follow these steps to modify port settings:
1. Log into Configuration Manager, click the Admin tab, and
then click $! in the task bar.

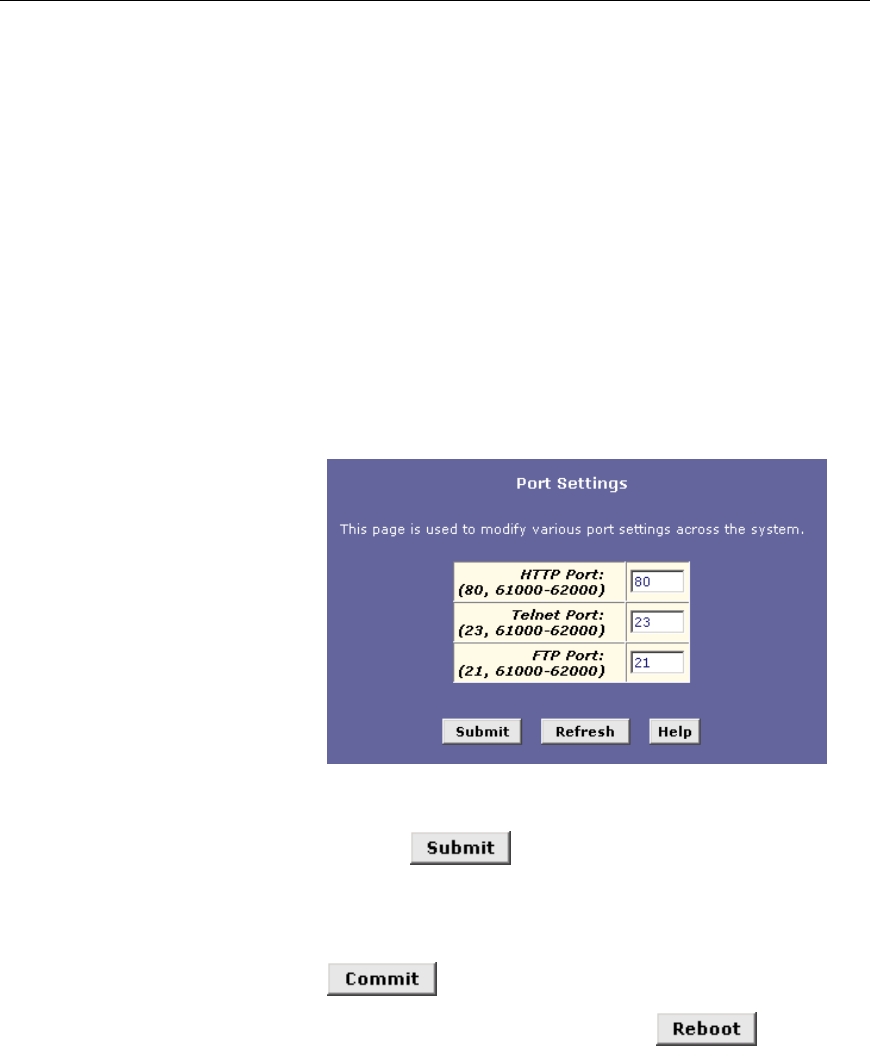

The Port Settings page is shown in Figure 86.
Figure 86. Port Settings Page
2. Type the new port number(s) in the appropriate text box(es)
and click .
The default port numbers are shown in Figure 86. You can
enter non-standard port numbers in the range 61000-62000.
3. Click in the task bar, and click
to save your changes to permanent memory.
4. On the Commit & Reboot page, click .
Note that the new settings will not be effective until you reboot the
system.
