18-EN
• No sound is produced by the system when the power output is set to
OFF.
Turning Mute Mode On/Off (INT MUTE)
If a device having the interrupt feature is connected, audio will be
automatically muted whenever the interrupt signal is received from the
device.
Setting the AUX+ SETUP Mode
An external device (such as a portable music player) can be connected
to the iPod Direct connector of this unit. An iPod Direct/RCA Interface
cable (optional) is required.
A portable music device and an iPod cannot be connected to the iPod
Direct connector at the same time.
You can change the AUX+ NAME display when AUX+ SETUP is set to
ON. Press
/ENT when AUX+ SETUP is set to ON, and select
AUX+ NAME by turning the Rotary encoder, then press /ENT.
After that, turn the Rotary encoder to select the desired AUX+ NAME.
Setting the AUX+ Level (AUX IN GAIN)
After setting to ON in “Setting the AUX+ SETUP Mode”, this setting
can be carried out.
Setting the External Digital Input
When an ALPINE Ai-NET compatible digital audio processor
(PXA-H701) and a DVD player (DVE-5207) not compatible with
Ai-NET are connected, set D-AUX to ON to enjoy 5.1-channel
surround sound.
You can change the D-AUX NAME display when D-AUX is set to ON.
Press
/ENT when D-AUX is set to ON, and select D-AUX NAME
by turning the Rotary encoder, then press /ENT. After that, turn
the Rotary encoder to select the desired D-AUX NAME.
• Press SOURCE/ , and select the DIGITAL-AUX mode, and adjust
the volume, etc.
• After input selection is completed, turn the ignition off and back on
again. Setting of the optical digital input switch is completed.
• Depending on the connected audio processor, DVD player sound
may continue to be output, even though the source is changed to
another one. If this occurs, set the DVD player’s power to OFF.
Setting the AUX Mode (V-Link)
You can input TV/video sound by connecting an optional Ai-NET/RCA
Interface cable (KCA-121B) or Versatile Link Terminal (KCA-410C) to
this component.
You can change the AUX name display when AUX IN is set to ON.
Press
/ENT when AUX IN is set to ON, and select AUX NAME by
turning the Rotary encoder, and then press /ENT.
After that, turn the Rotary encoder to select the desired AUX name.
If the KCA-410C is connected, it is possible to select two AUX names.
• Via KCA-410C, up to 2 external devices with RCA output can be
connected. In this case, press SOURCE/
to select AUX mode and
then press BAND to select your desired device.
Changer Name Setting
This setting is used when the head unit is connected to the USB Adapter
for MP3 (KCA-620M). You can set the name to be displayed on the unit
depending on the device to which the USB Adapter for MP3
(KCA-620M) is connected.
HD Radio Station Call Setting (STATION CALL)
In the HD Radio mode, the number of display characters for the HD
Radio station name can be selected.
Digital Seek ON/OFF Setting
POWER IC ON: The speakers are driven by the built-in
amplifier.
MUTE ON / MUTE OFF (Initial setting)
AUX+ ON / AUX+ OFF (Initial Setting)
AUX+ ON: Set to ON when a portable device is connected. If
SOURCE/ is pressed and AUX+ SETUP is
selected, the sound of the portable device is input
to the unit.
AUX+ OFF: Set to OFF when an iPod is connected.
LOW (Initial setting ) / HIGH
LOW: Decreases the external input audio level.
HIGH: Increases the external input audio level.

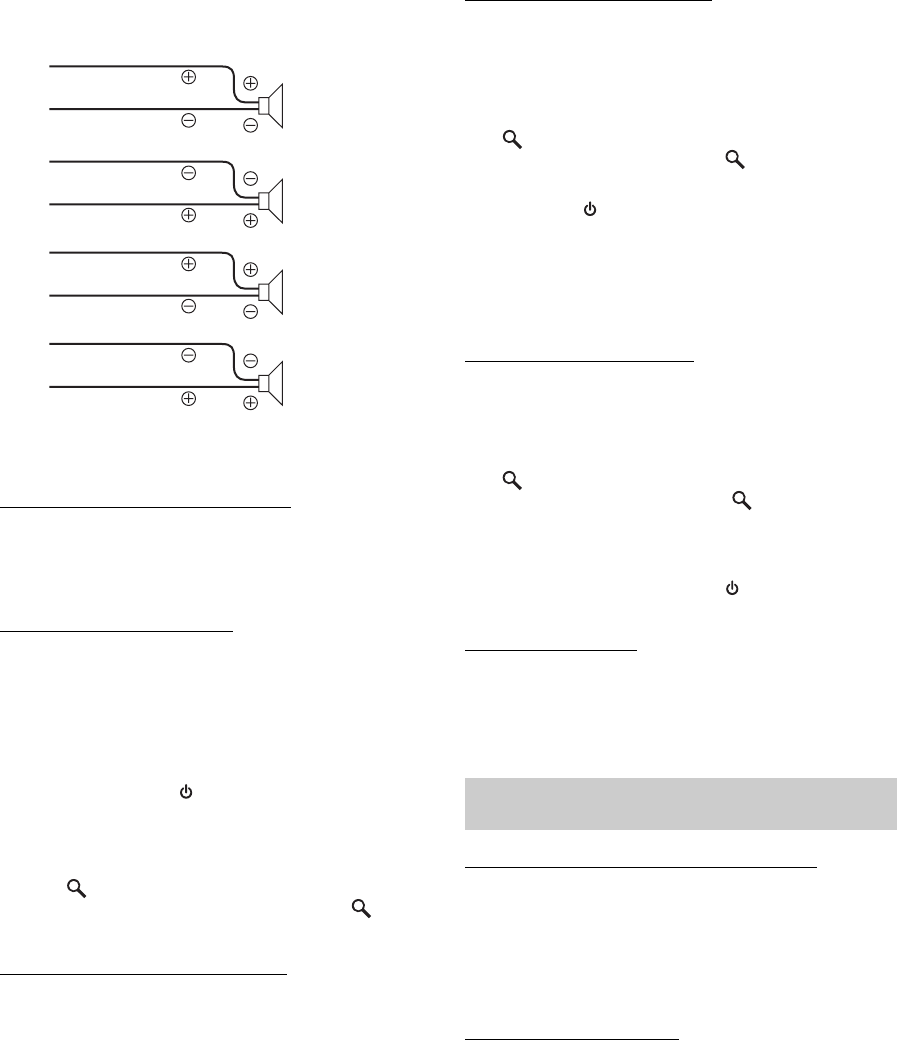

Speakers
SPEAKER
RIGHT FRONT
Front
right
SPEAKER
RIGHT REAR
Rear
right
SPEAKER
LEFT REAR
Rear
left
SPEAKER
LEFT FRONT
Front
left
D-AUX ON / D-AUX OFF (Initial setting)
AUX IN ON / AUX IN OFF (Initial setting)
CHANGER (Initial Setting) / USB / PORTABLE
HD Radio (Only when HD Radio is
connected)
SHORT (Initial setting) / LONG
SHORT: 7 characters (FM)
4 characters (AM)
LONG: 56 characters
DIG SEEK ON / DIG SEEK OFF (Initial Setting)
ON:
SEEK UP/DOWN is used only for Digital Radio
Station.
OFF:
SEEK UP/DOWN is used for all Radio Stations.
