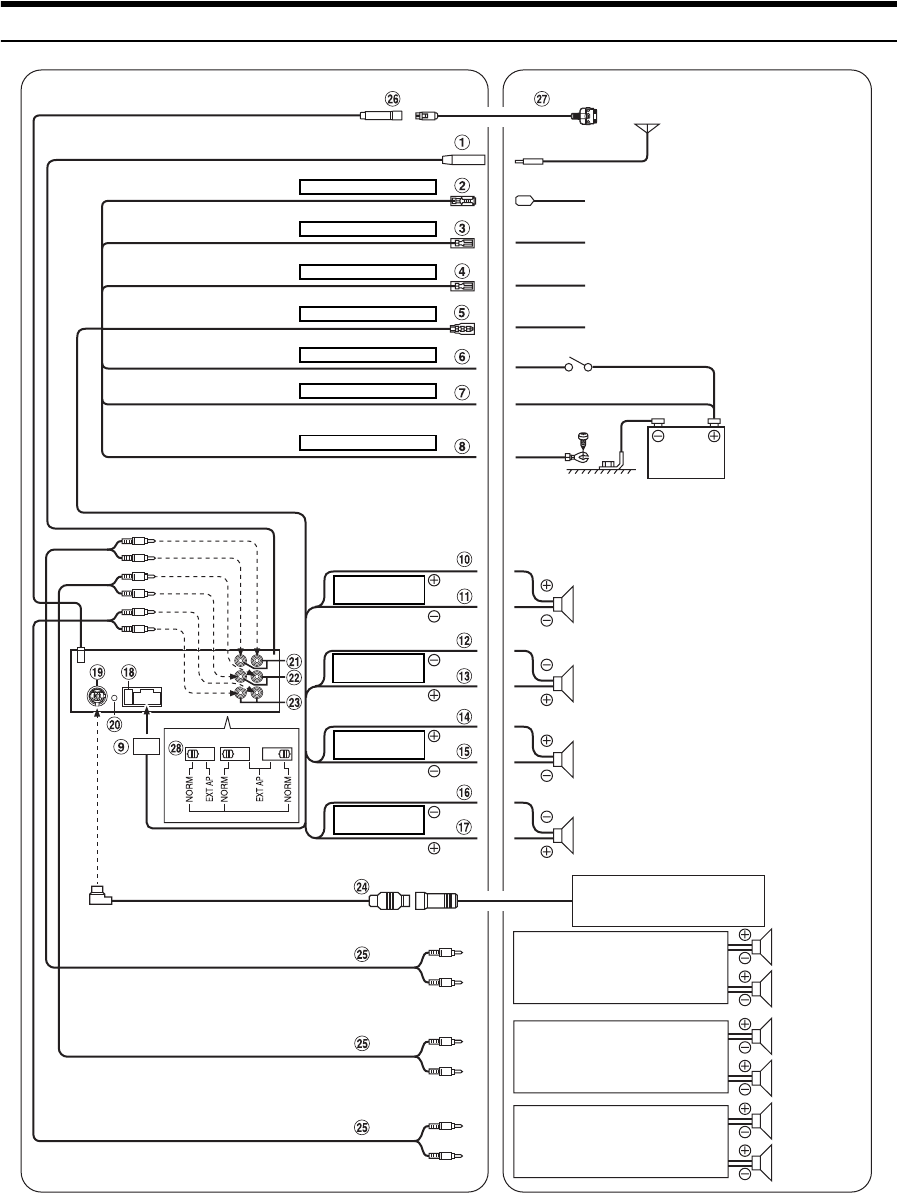

Connections
* The label is attached on the bottom of the unit.
*
Antenna
Blue POWER ANT
Blue/White
Orange ILLUMINATION
Red IGNITION
Yellow BATTERY
Black GND
Gray
SPEAKER
RIGHT FRONT
White
To power antenna
To amplifier or equalizer
To vehicle phone
Ignition Key
Battery
Speakers
Front right
Rear right
Rear left
Front left
CD Changer
(Sold Separately)
Speakers
Amplifier
Amplifier
Amplifier
Rear Left
Rear Right
Front Left
Front Right
Subwoofers
To iPod
Gray/Black
Violet/Black
Violet
Green
Green/Black
White/Black
SPEAKER
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
LEFT FRONT
REMOTE TURN-ON
To the instrument cluster illumination
lead
Pink/Black
AUDIO INTERRUPT IN
