29-EN

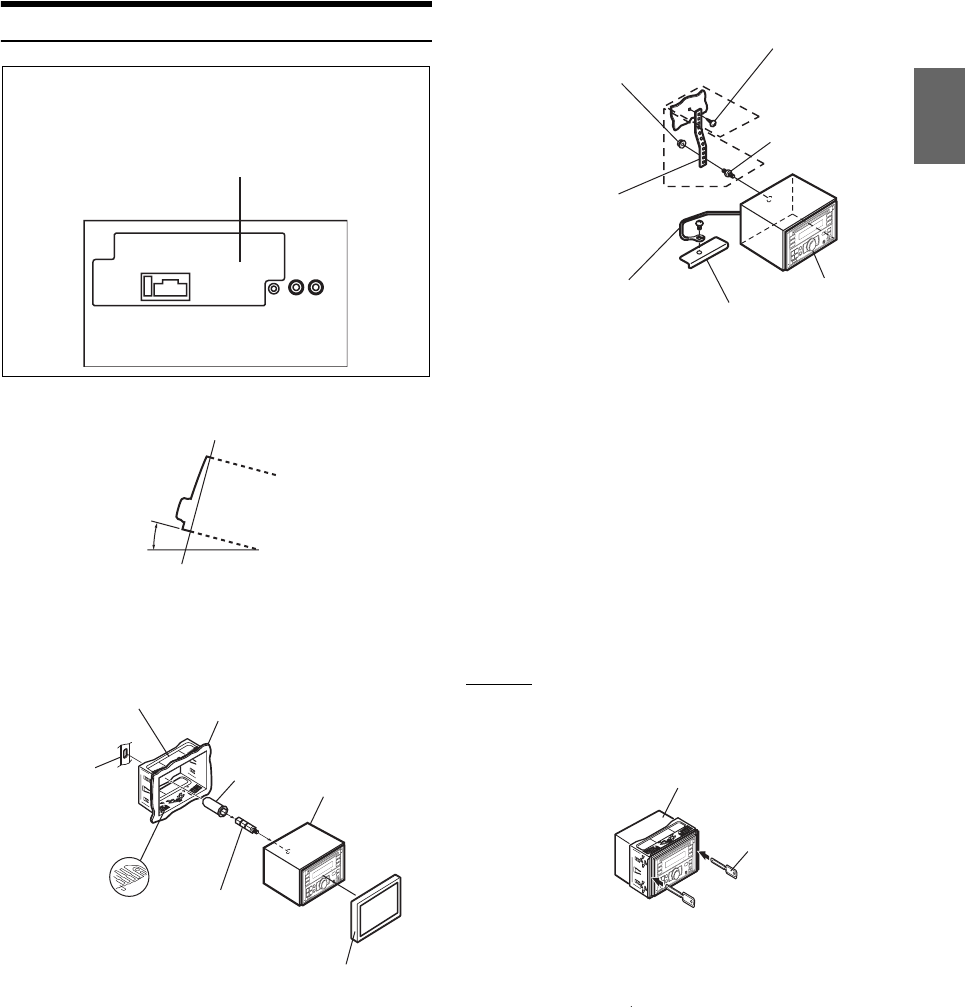

Installation
• The main unit must be mounted within 30 degrees of the horizontal
plane, back to front.
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
Removal
1. Insert the bracket keys into the unit, along the guides
on either side. The unit can now be removed from the
mounting sleeve.
2. Pull the unit out, keeping it unlocked as you do so.
1
Remove the mounting sleeve from the main unit
(see “Removal” on page 29). Slide the mounting
sleeve into the dashboard and fix it with the metal
shackles.
Heat sink
Caution
Do not block the unit’s heat sink, thus preventing air
circulation. If blocked, heat will accumulate inside the
unit and may cause a fire.
Less than 30°
Mounting Sleeve
(Included)
Dashboard
Rubber Cap (Included)
Face Plate (Included)
This unit
Hex Bolt
(Included)
Bracket key
Pressure
Plates
*
2
When your vehicle has the Bracket, mount the long
hex bolt onto the rear panel of the CDE-W203Ri and
put the Rubber Cap on the hex bolt. If your vehicle
does not have the Mounting Support, reinforce the
head unit with the metal mounting strap (not
supplied). Secure the ground lead of the unit to a
clean metal spot using a screw (
*
1
) already attached
to the vehicle’s chassis. Connect all the leads of the
CDE-W203Ri according to details described in the
CONNECTIONS section.
• For the screw marked “*
2
”, use an appropriate screw for the chosen
mounting location.
3
Slide the CDE-W203Ri into the dashboard until it
clicks. This ensures that the unit is properly locked
and will not accidentally come out from the
dashboard.
Metal
Mounting
Strap
Hex Nut (M5)
Bolt Stud
Screw
This unit
Chassis
Ground Lead
*
2
*
1
This unit
Bracket keys
(Included)
