Installing the Main Unit
Universal Mount

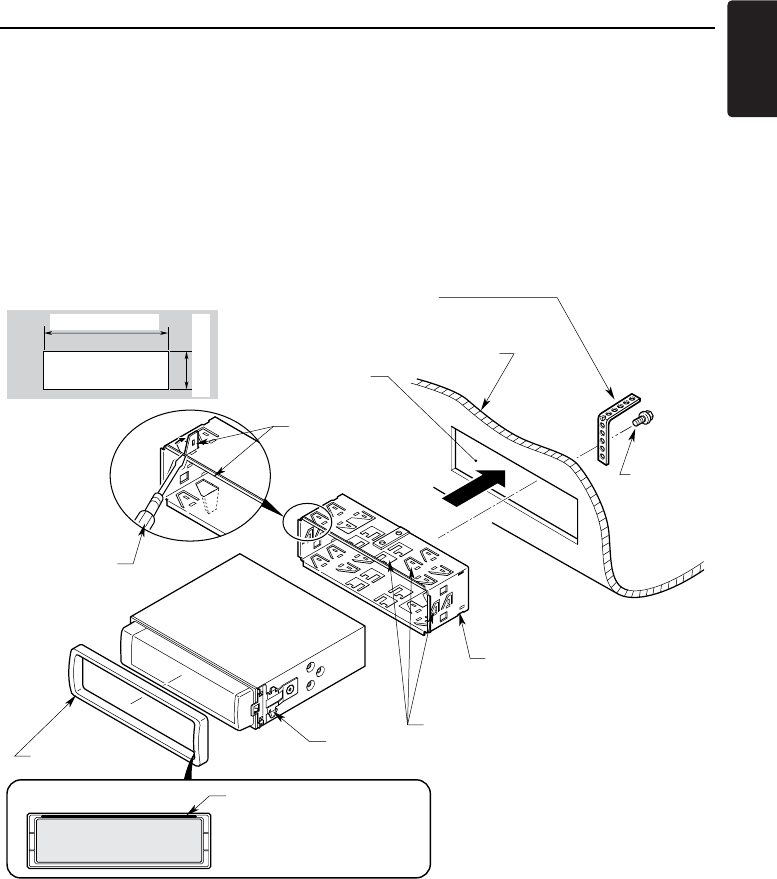

1. Place the universal mounting bracket into the
instrument panel, use a screwdriver to bend
each stopper of the universal mounting
bracketinward, then secure the stopper as
showninFigure 6.
2. Wire as shown in Section 7 (see page 37).
3. Insert the main unit into the universal
mounting bracket until it locks.
4. Mount the outer escutcheon so that all the
hooks are locked.
Note:
• Some carmodelsrequire specialmountingkitsfor
proper installation.Consult your Clariondealerfor
details.
• Fasten thefront stoppersecurely to prevent the
main unit from comingloose.
• Console opening dimensions
Hole
7-3/16" (182 mm)
2-1/16"(53 mm)
Hole
Hexagonal
bolt
Instrument panel
Stoppers
Screwdriver
Universal mounting bracket
Stoppers
2-Spring
Main Unit
Outer escutcheon
Note:
Set theouter escutcheon
so that itsmetallicparton
thebacksidefitsthe upper
edge of themainunit.
Figure 5
Strap
* This part is not provided.
