38 NZ502
English
English

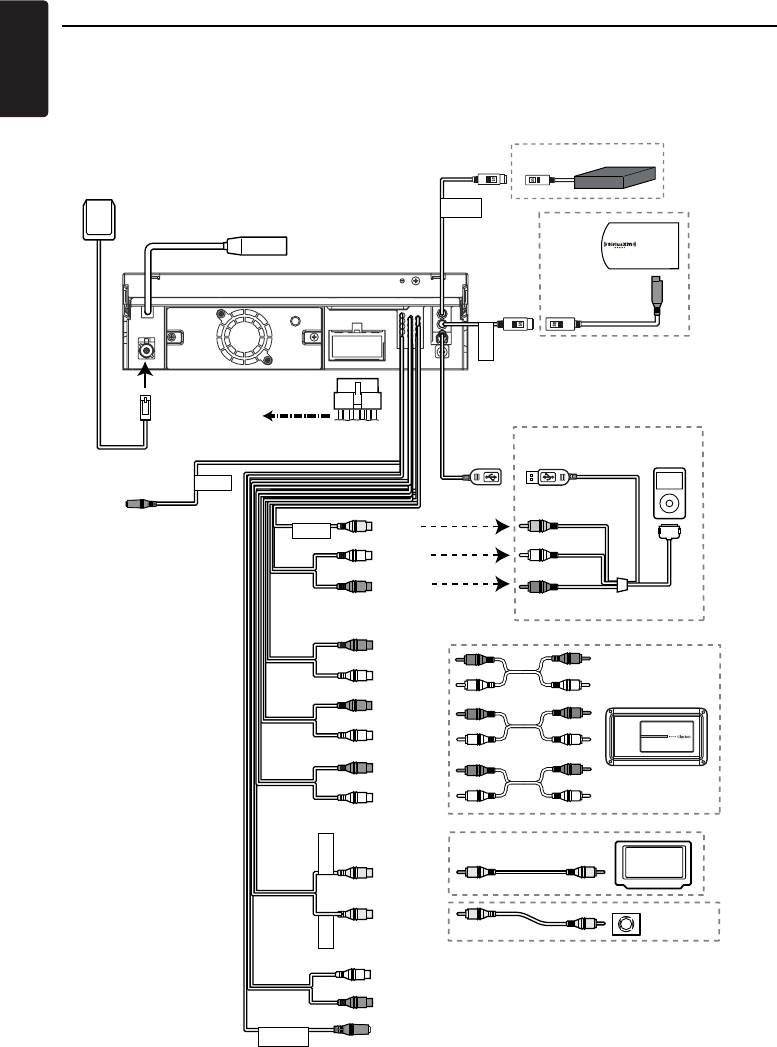

Wire Connections
Note:
•Beforeinstalling,besuretodisconnectthenegativecableofthecarbattery.
•Intheoptionaldevices,theRCAcablesandtheConnectorcablesareseparately-solditems.
Black
English
NX501/NZ501 61
English
Owner’s Manual
Radio Antenna Jack
6-Channel Amplifier
Line Out
Subwoofer
Line Out
Rear R
Line Out
Rear L
Line Out
Front R
Line Out
Video Out
Front L
Video
Audio/R
Audio/L
Video Out
Camera
Yellow
White
White
Red
Red
Red
White
Yellow
Purple
Gray
Gray
Red
Black
Black
Black
White
Connector
Cable
Steering Wheel
Remote Control Terminal
SiriusXM
Yellow
Monitor
CCA-750 (sold separately)
Yellow
White
Red
Red
Audio/R
Audio/L
Red
White
Green
GPS
Antenna
External
Microphone
Connection
HD Radio
HD Radio™ Tuner (THD400)
NZ501
Refer to
EX MIC
HD
SiriusXM
SiriusXM Vehicle
Tuner
iPod/iPhone
Rear Vision Camera
SWI
CAMERA
VIDEO OUT
VISUAL IN
VEHICLE TUNER
Refer to
page 39
