SYSTEM CONNECTIONS

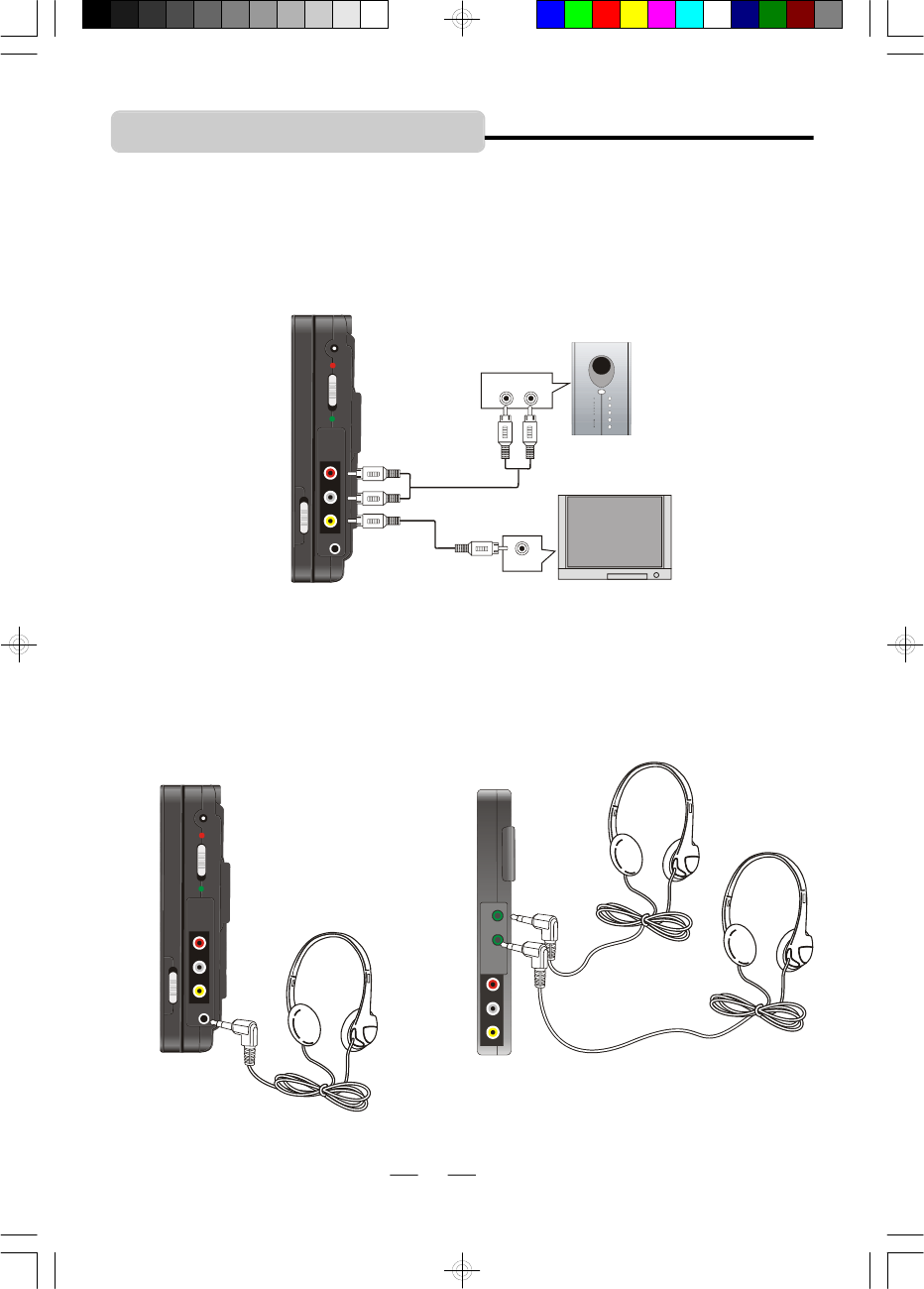

Connecting to a digital home theater system
Refer to your home theater system’s manual before connection.
For Video, insert the video plugs into the video out jack on the DVD player main unit and the
video in jack on your TV.
For audio, connect the main unit’s audio out jacks and your home theater’s audio in jacks by
an audio cable.
VIDEO IN
AUDIO IN
R
L
Your home theater
system or amplifier
Your TV
Main unit
3. Connecting to your headphones (headphones are not included)
Turn down the volume of the DVD player (main unit or slave unit, depend on which unit you are
using) and connect the headphones (optional, not included) to the DVD player’s PHONES
jack, when headphones are connected, the speakers of your DVD player will automatically
turn off. Adjust the volume to your taste (but not too loud, loud sounds may damage your
hearing).
Main unit
Slave unit
OR
13
red
white
yellow
yellow
redwhite
Shut off power of your
home theater while
connecting the cables.
One headphones may be plugged into the main unit, and two headphones may be plugged into
the slave unit.
