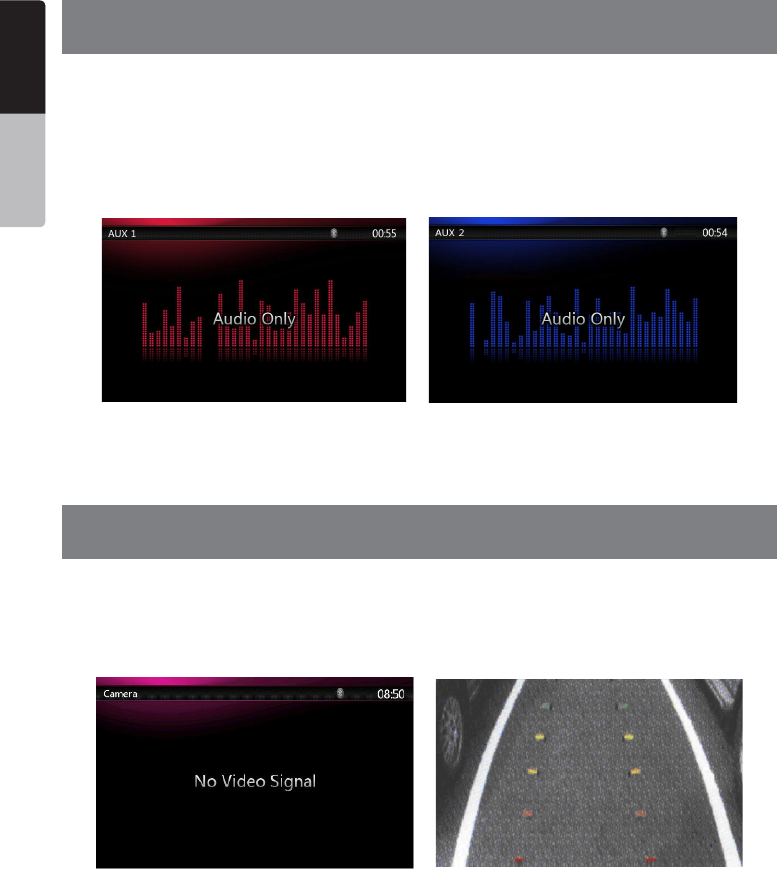

19. AUX 1 / AUX 2 OPERATIONS
Externalperipheraldevices,includingagameconsole,camcorder,iPod/iPhone,etc.canbeconnectedtothe
AUX1orAUX2connectoronthefrontorbackofthisunitusingtheA/Vmediacables.
Switching to AUX IN / AV IN mode
• Press[AUX 1] or [AUX 2]buttononMainMenutoselectdesiredmode(whenunitisconnected).Iftheexternal
deviceconnectedtoAUX1orAUX2inputhaveaudiosignal,theunitwillbroadcastaudioofexternaldevice.
• Press[Menu]buttononOperationalPaneltoreturntotheMainMenu.
YoucannotdirectlycontrolexternaldevicesconnectedtoAUX1orAUX2input.
20. CAMERA OPERATIONS
Switching to Camera mode
Press[Camera]buttononMainMenutoselectdesiredmode.
TheLCDwilldisplaytheexternalcameravideo.Thescreenwilldisplay“NoVideoSignal”menu,ifavalidcamera
is not connect to this head unit.
PressMenubuttononOperationalPaneltoreturntotheMainMenu.
Note:
Ifthereversecableisconnectedcorrectlytothecar,thecenterunittoswitchtocameramodeautomaticallywhenthe
car is in reverses.
