Alpine PXA-H700 Car Stereo System User Manual



16-EN

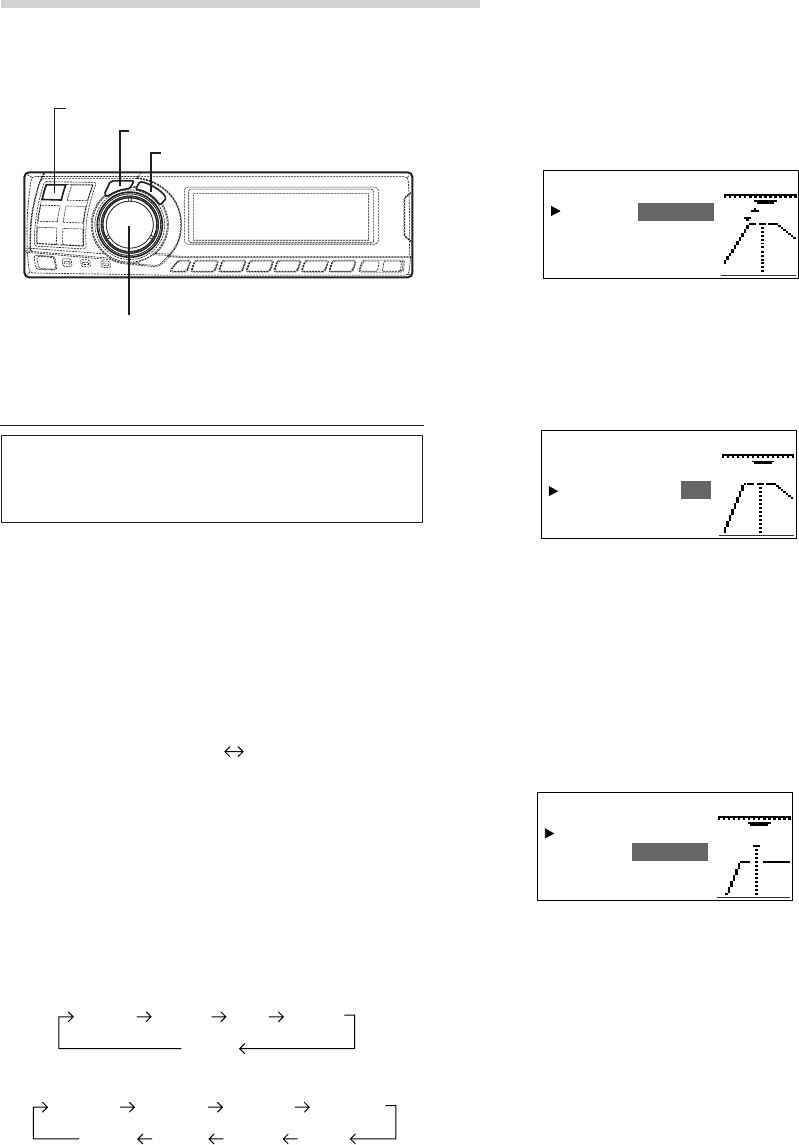

X-OVER adjustment
This section describes the procedure for making
the X-OVER adjustment. Before performing this
procedure, see “X-OVER” on page 15.
1 Check that the defeat mode is off.
(See page 28.)
2 Press the X-OVER button to set the X-OVER
adjustment mode.
3 Press and hold the CHANNEL button for at least
2 seconds and select “L and R (LR)” or “L or R”.
L and R (LR): Sets the same adjustment values
for the left and right channels.
L or R: Different adjustment values can be
set for the left and right channels.
4 Press the CHANNEL button to select the desired
channel, then press the ENTER button.
When “L and R (LR)” is selected:
When “L or R” is selected:
*1 When center is set to subwoofer, it is not
displayed.
*2 When center is set to subwoofer, it becomes
Sub.W(L).
*3 When center is set to subwoofer, it becomes
Sub.W(R).
Settings/Adjustments
(factory default)
5 Turn the Rotary encoder to adjust the H.P.F.
cutoff frequency, then press the ENTER button.
The adjustable bands differ according to the
channel (speaker).
6 Turn the Rotary encoder to adjust the H.P.F.
slope, then press the ENTER button.
To set filter off (slope off), press and hold the X-
OVER button for at least 2 seconds.
7 Next, make the adjust for the L.P.F. in the same
way as in steps 5 and 6.
8 Turn the Rotary encoder to adjust the level,
then press the CHANNEL button.
Press the ENTER button to return to step 5.
The level can be adjusted between –12 and 0.
9 Repeat steps 4 to 8 to adjust other channels.
10
Once the adjustments are completed, press the
X-OVER button.
CHANNEL
ENTER
X-OVER
Rotary encoder
L and R (LR) L or R
Center
Sub. W
Front 1 Front 2
Rear
*1
Front 2 R
Center
Sub. W
Front 1 L Front 1 R
Front 2 L
Rear R Rear L
*2*3
X–
O
RP Front 2 1/2VE
HP : 350fc
lopHPs 12e:
LPf 1c:
LP
spe:6
I
o
.8k
X–
O
RP Front 2VE
HP : 35 0fc
lopHPs 18e:
LPf 1 .8kc:
LPs pe : 6
I
o
1/2
X–
O
RP Front 2VE
Le l :ve
–dB4
2/2
