Installation and Connections

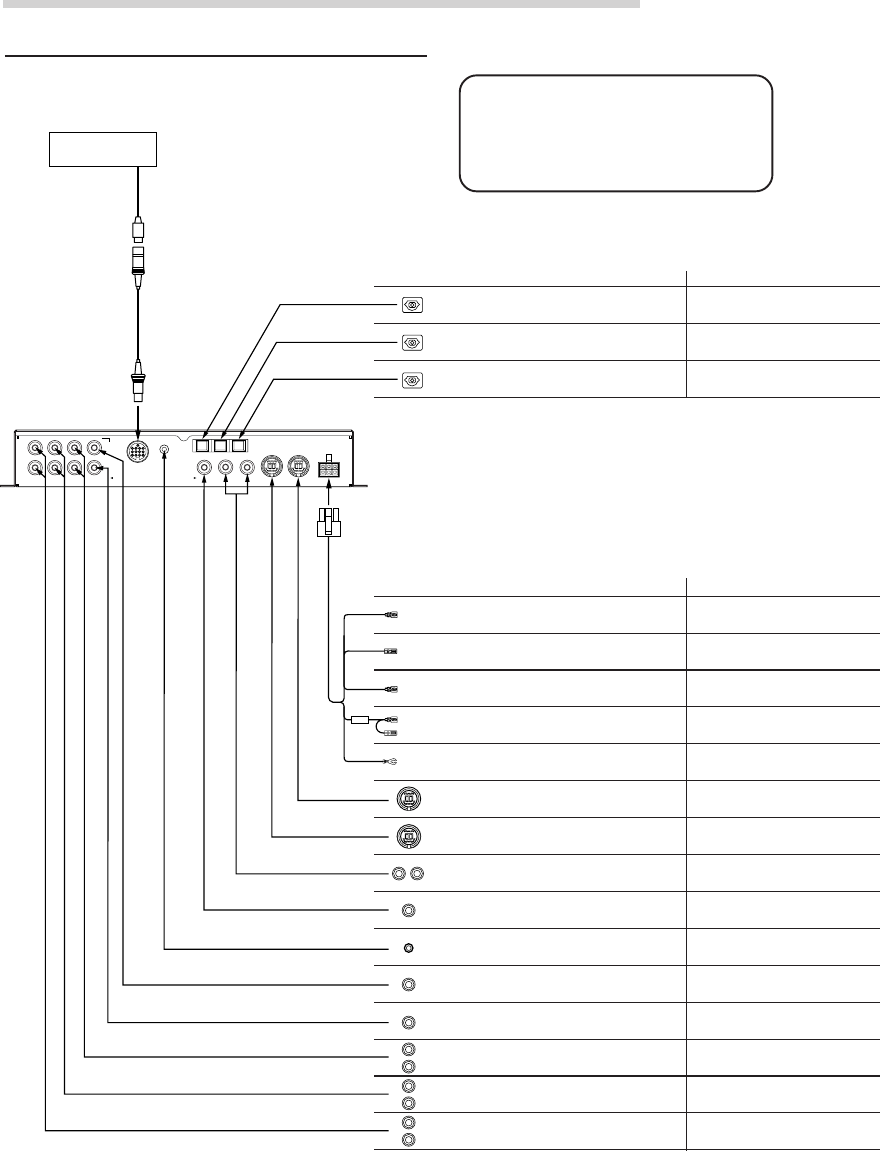

Basic Connections Diagram
Display
Cord colors and cord/terminal specifications
Connect to:
• Front 1 speaker output jacks (RCA outputs)
Outputs signals for driving the front 1 speakers.
• Front 2 speaker output jacks (RCA outputs)
Outputs signals for driving the front 2 speakers.
• Rear speaker output jacks (RCA outputs)
Outputs signals for driving the rear speakers.
• Subwoofer output jack (RCA outputs)
Outputs signals for driving the subwoofer.
• Center speaker or subwoofer output jack (RCA output)
Outputs signals for driving the center speaker or subwoofer.
• Navigation audio input jack (RCA input)
Used to input the audio output signals of a navigation
system.
Connect to the amplifier for the front 1
speaker.
Connect to the amplifier for the front 2
speaker.
Connect to the amplifier for the rear speaker.
Connect to the amplifier for the subwoofer.
Connect to the amplifier for the center
speaker or subwoofer.
Used for automatic adjustment.
• Microphone jack
Use this to connect a microphone.
Connect to the navigation system.
Connect to an Ai-NET product using an Ai-NET cord.
For connection to the PXA-H700, use the straight
side.
• Changer input terminal (Ai-NET input)
Used for system expansion (Ai-NET changer, etc.).
Connect to an Ai-NET product using an Ai-NET cord.
For connection to the PXA-H700, use the straight
side.
Used for RCA connections.
Connect to the head unit.
• Ai-NET input terminal (Ai-NET input)
Used for system expansion (DVD player, etc.).
• Audio input jacks (RCA inputs)
Used to input the audio output signals of a head unit
connected with RCA connections to the PXA-H700.
• Remote ON cable
Connect to the head unit for RCA connections.
(Non Ai-NET connection)
• Remote OUT cable
Connect to the amplifier or other peripheral device.
• Guide control cable
Used to interrupt the navigation system’s sound.
• Ground cable
Connect securely to a metal part of the vehicle’s body.
• Battery power cable
Power is supplied constantly to the PXA-H700 regardless
of whether the engine key is on or off.
Used for RCA connections.
(Non Ai-NET connection)
Used to add an amplifier.
Connect to the navigation system.
Connect to the vehicle’s body.
Connect this lead to the positive(+) post of
the vehicle's battery.
Blue/
White
Blue/
White
White/
Green
Yellow
Fuse
(3A)
Black
Terminal specifications Connect to:
Connect to an Ai-NET product
using an optical fiber cable.
• Head unit input terminal (optical digital input)
Used for system expansion (Ai-NET head unit, etc.).
Connect to an Ai-NET product
using an optical fiber cable.
• Changer input terminal (optical digital input)
Used for system expansion (Ai-NET changer, etc.).
Connect to an Ai-NET product
using an optical fiber cable.
• DVD player input terminal (optical digital input)
Used for system expansion (DVD player, etc.).
(L)
(R)
FRONT 1
(FULL RANGE
/TWEETER)
FRONT 2 REAR
SUBWOOFER
CONTROL UNIT
MIC
CHG
DIGITAL 2
CD
DIGITAL 1
DVD
DIGITAL 3
GUIDEINPUTOUTPUT
CENTER
SELECTABLE
SUBWOOFER
(L) (R)
Ai–NET IN
ANALOG 2
ANALOG 1
CHANGER IN
ANALOG 3
POWER SUPPLY
CAUTION
Do not connect or disconnect the
display cable when the power of the
unit is on.
