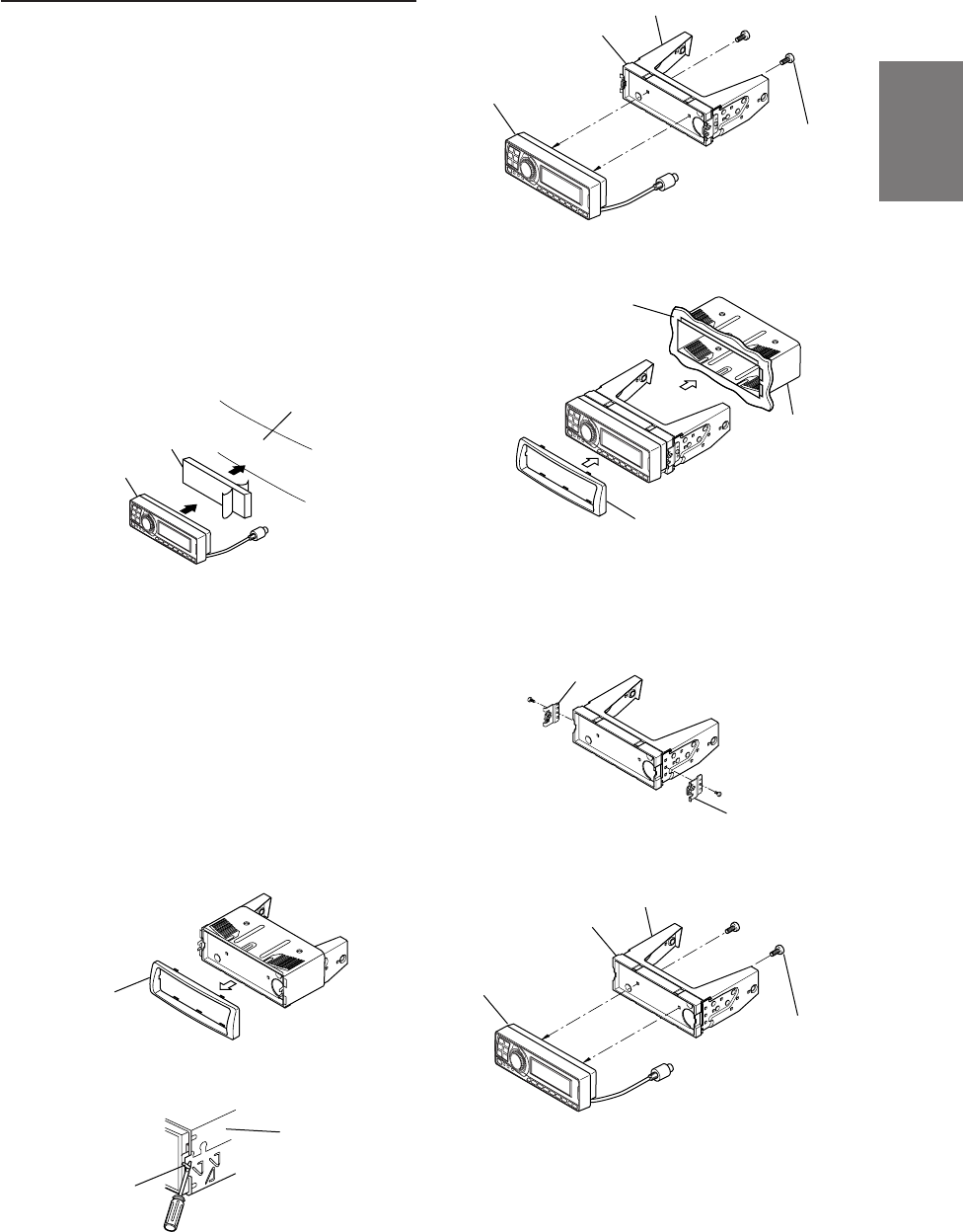

Installation
The PXA-H700 is made up of two components: the
Control Unit and Base Unit.
Mounting the control unit
CAUTION:
Do not install the control unit near the air-bag of the
front passenger’s seat.
• Confirm the installation location will be safe.
• Determine the mounting position on the
dashboard. The area should be large enough to
center the unit and reasonably flat.
Installation using Velcro fastener
1. Without separating the two pieces of Velcro
fastener, peel off the paper backing on one side
and place on the back of the control unit.
2. Make sure the location selected is free from
moisture or dirt. Peel off the backing paper from
the other side of the Velcro fastener on the
control.
3. Place the control unit on the mounting location
and press the unit firmly to mount securely.
Mounting other units
1 Remove the face plate.
2 Use a screwdriver, etc., to slide the locking pin,
then take out the inner case.
3 Mount the control unit using the included screws.
4 Mount the previously removed inner case into
the dashboard. Slide the control unit into the
case.
<JAPANESE CAR>
1 After step 2 on “Mounting other units” of
“Mounting the control unit”, remove the side
bracket.
2 Mount the control unit using the included screws.
Face plate
Inner case
Locking pin
Side bracket
Side bracket
Bracket
Spacer
Control unit
Pan head screw
(M3 x 5) x 2
Pan head screw
(M3 x 5) x 2
Control unit
Spacer
Bracket
Inner case
Face plate
Dashboard
Dashboard
Velcro fastener
Control unit
